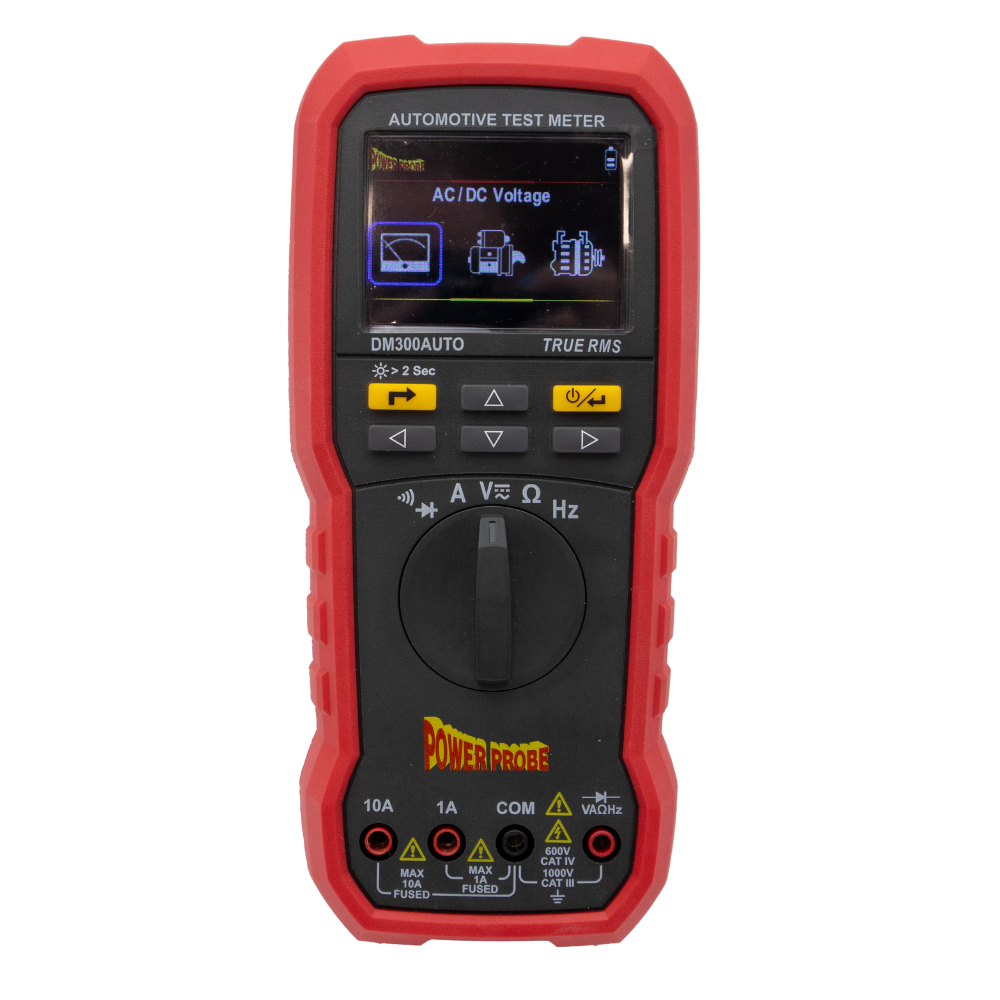

POWER PROBE · PPDM300AUTO

Automotive Test Meter

Automotive Test Meter

Get clearer answers to automotive electrical problems.

$499.95
$499.95
Sale Sold out
Shipping calculated at checkout.
  • Measure current directly at the fuse without removing it.
  • Check starting and charging performance with dedicated automotive test modes.
  • Handle everyday electrical testing with one versatile meter.
Product description

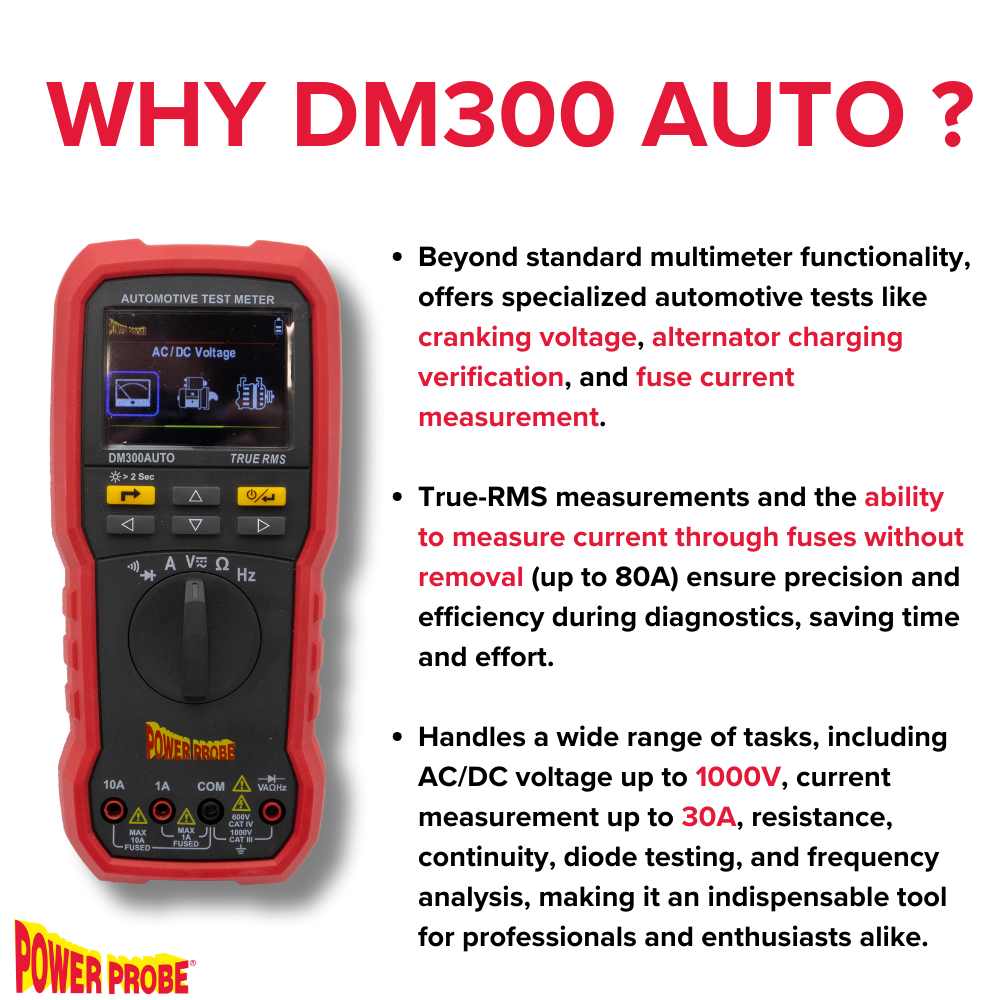

The DM300AUTO is much more than a complete True-RMS Digital Multimeter. It includes also some other functionalities of great utility for professionals dedicated to the automotive sector, such as checking the status of fuse protection, checking the correct charging process of the alternator or measuring the possible cranking Voltages in the supply circuit. The TFT color display and the user-friendly menu make this instrument an indispensable tool for AUTO professionals.

Technical specifications

• Measures current flowing through fuses without removing the fuse (up to
80A)
• Fuse voltage drop testing
• Guided automotive test such as:
• Cranking Voltage test
• Alternator Charging test
• AC/DC Voltage measurements up to 1000V
• Current measurements up to 30A
• Measures resistance, continuity and diode testing
• Frequency and duty cycle for PWM signals

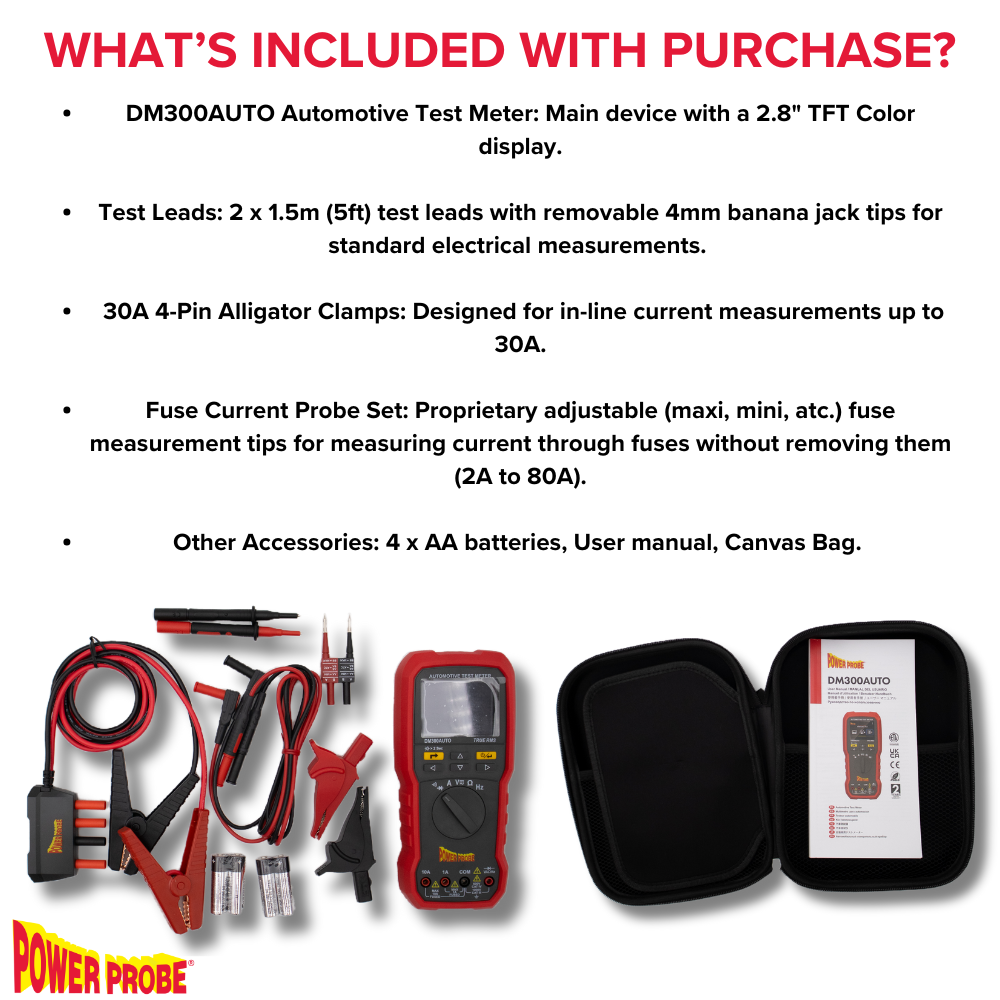

What’s included

• 2 x 1.5m (5ft) Test Leads
• 2 x alligator clips
• 30A test probe
• 1 x fuse current probe set
• 4 x AA Batteries
• USB-A to USB-C charging Cable
• User manual
• Canvas bag

User Manual
View user manual (opens in a new tab)
Shipping & returns

Shipping policy

Returns policy

View full details

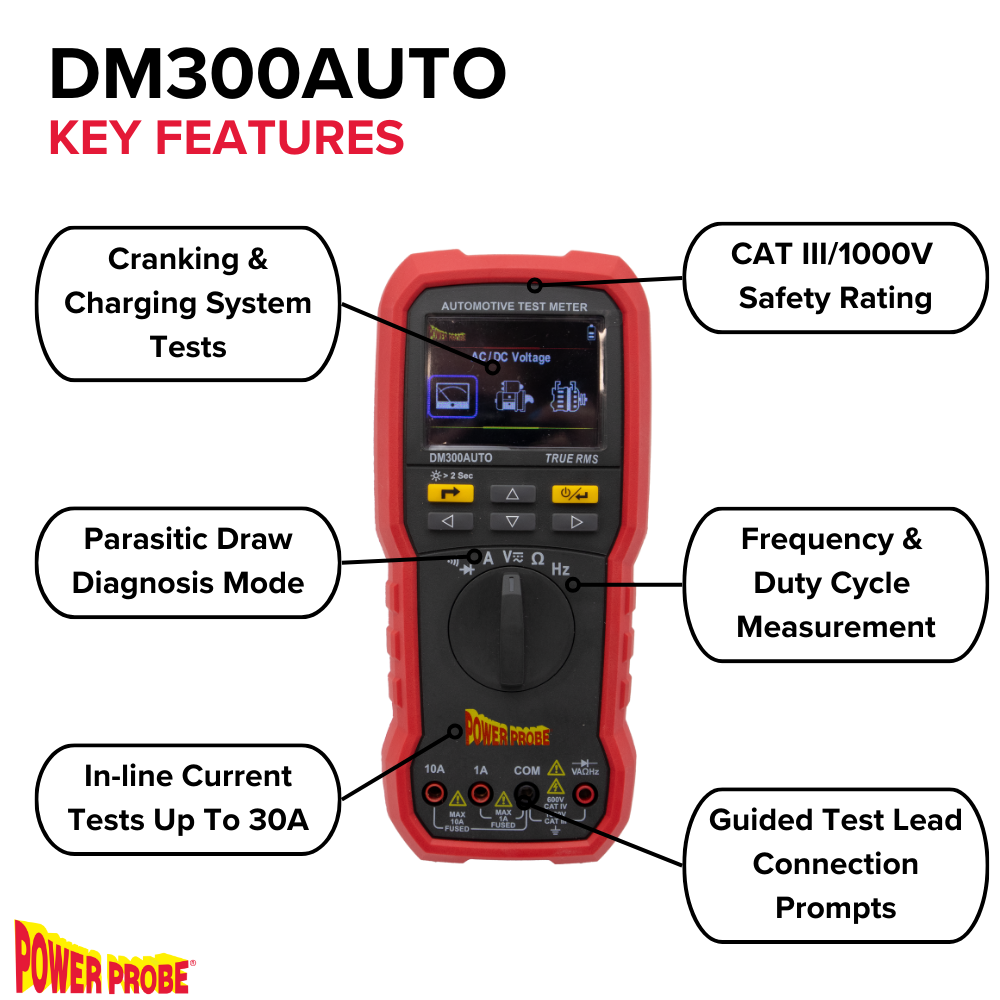

Built for automotive troubleshooting

Fuse current testing

Measure current through MINI, ATC, and MAXI fuses directly in the fuse box.

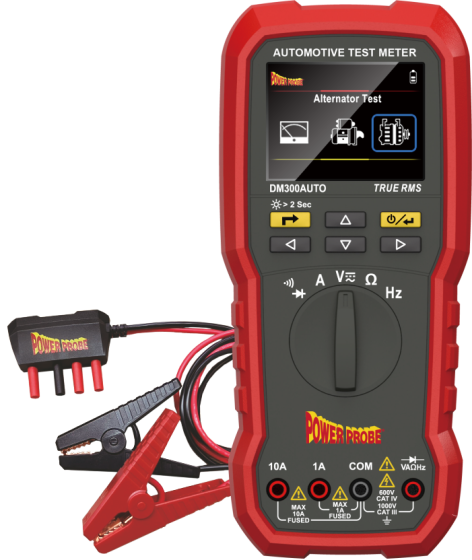

Starting & charging tests

Capture cranking voltage drops and test conventional or smart alternators on 12V and 24V systems.

Versatile electrical testing

Check AC/DC voltage, current, resistance, continuity, diodes, LEDs, frequency, and duty cycle.
