POWER PROBE · PPFUSE

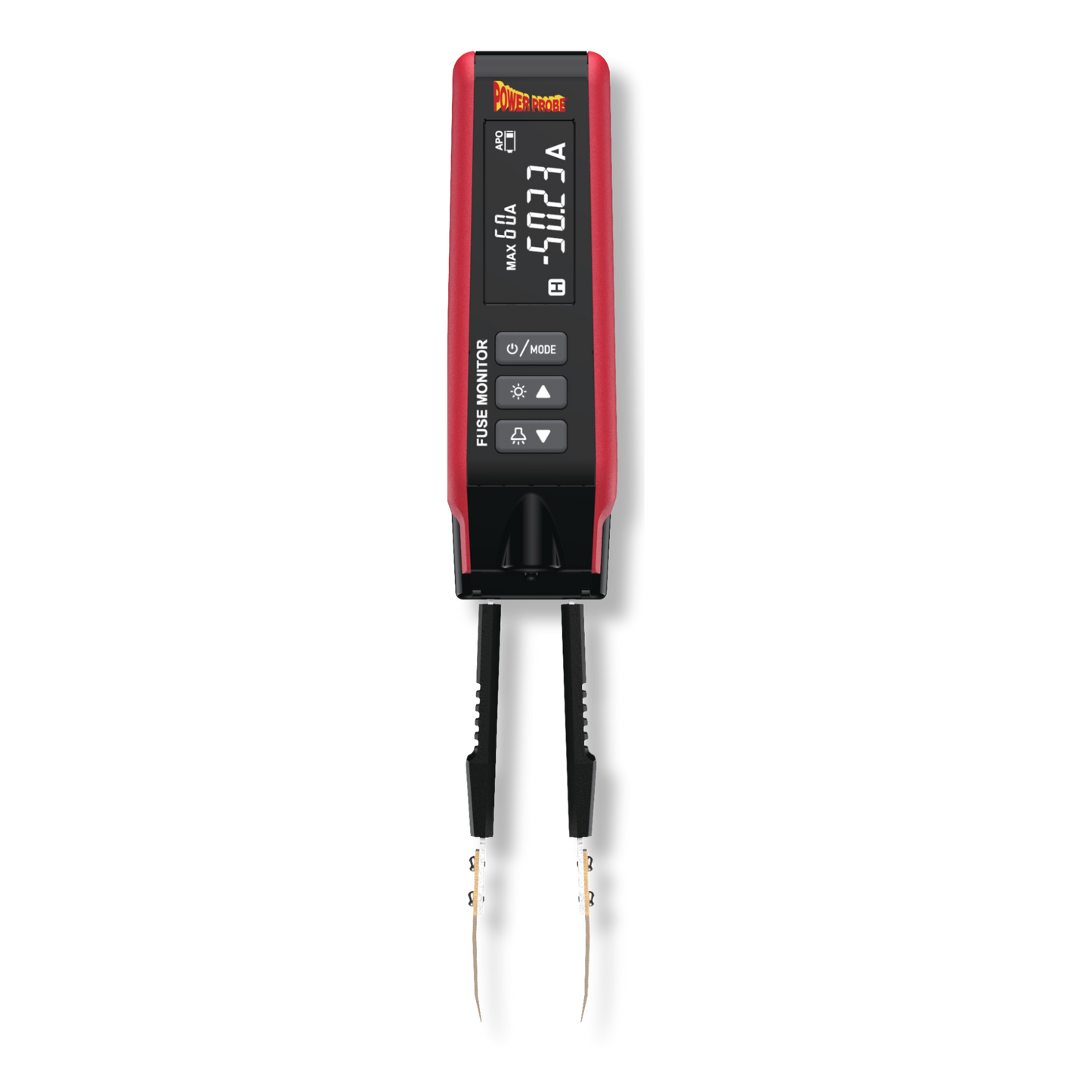

Fuse Monitor

Fuse Monitor

Measure fuse current and identify circuit status at a glance.

$169.95
$169.95
Sale Sold out
Shipping calculated at checkout.
  • Measure DC current directly at the fuse with dedicated modes for MINI, ATC/ATO, and MAXI automotive fuses.
  • See circuit status instantly with color-coded indicators for inactive, active, and potentially open fuse conditions.
  • Work more easily around the vehicle with Auto Hold, a rotating display, magnetic mounting, adjustable backlight, and built-in flashlight.
Product description

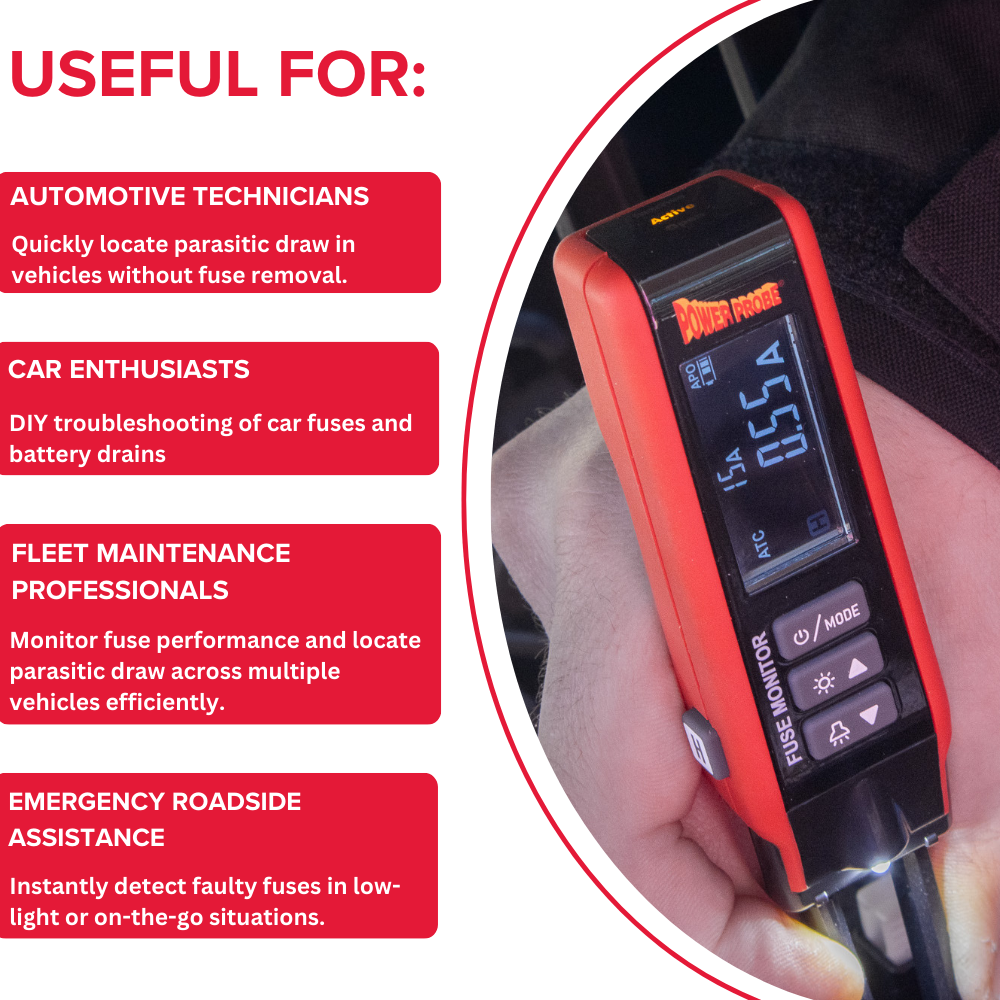

The Fuse Monitor is used to locate / isolate which circuit parasitic draw lies by measuring current across fuses without removing them. The PPFUSE can be used on Maxi, Mini, & ATC fuses with a maximum Amp rating of 80A. The Fuse Monitor calculates amp draw based on fuse size in real time. The PPFUSE is USB-C rechargeable, comes with a belt clip, has replaceable tips, and a work light.

Technical specifications
  • Supported fuse types: MINI, ATC/ATO, MAXI
  • MINI fuse measurement range: 2A–30A
  • ATC/ATO fuse measurement range: 1A–40A
  • MAXI fuse measurement range: 20A–80A
  • Measurement resolution: 0.01A
  • Current measurement accuracy: ±(3% + 5 digits)
  • Inactive status threshold: Less than 0.05A
  • Auto Hold: Automatically holds a stable reading for 5 seconds
  • Battery type: 3.7V / 420mAh rechargeable Li-ion
  • Battery life: Approximately 10 hours with flashlight off
  • Charging connection: USB Type-C
  • Auto power-off: After 10 minutes without button input
  • Operating temperature: 0°C to 50°C, subject to specified humidity limits
  • Storage temperature: -20°C to 60°C
  • Maximum operating altitude: 2,000 m / 6,562 ft
  • Drop rating: 4 ft per EN 61010-1
  • Vibration rating: MIL-PRF-28800F Class 2
  • Additional features: Magnetic mounting, rotational display detection, adjustable backlight, built-in flashlight
What’s included
  • 1× Fuse Monitor
  • 1× Integrated 3.7V / 420mAh rechargeable Li-ion battery

User Manual
View user manual (opens in a new tab)
Shipping & returns

Shipping policy

Returns policy

View full details

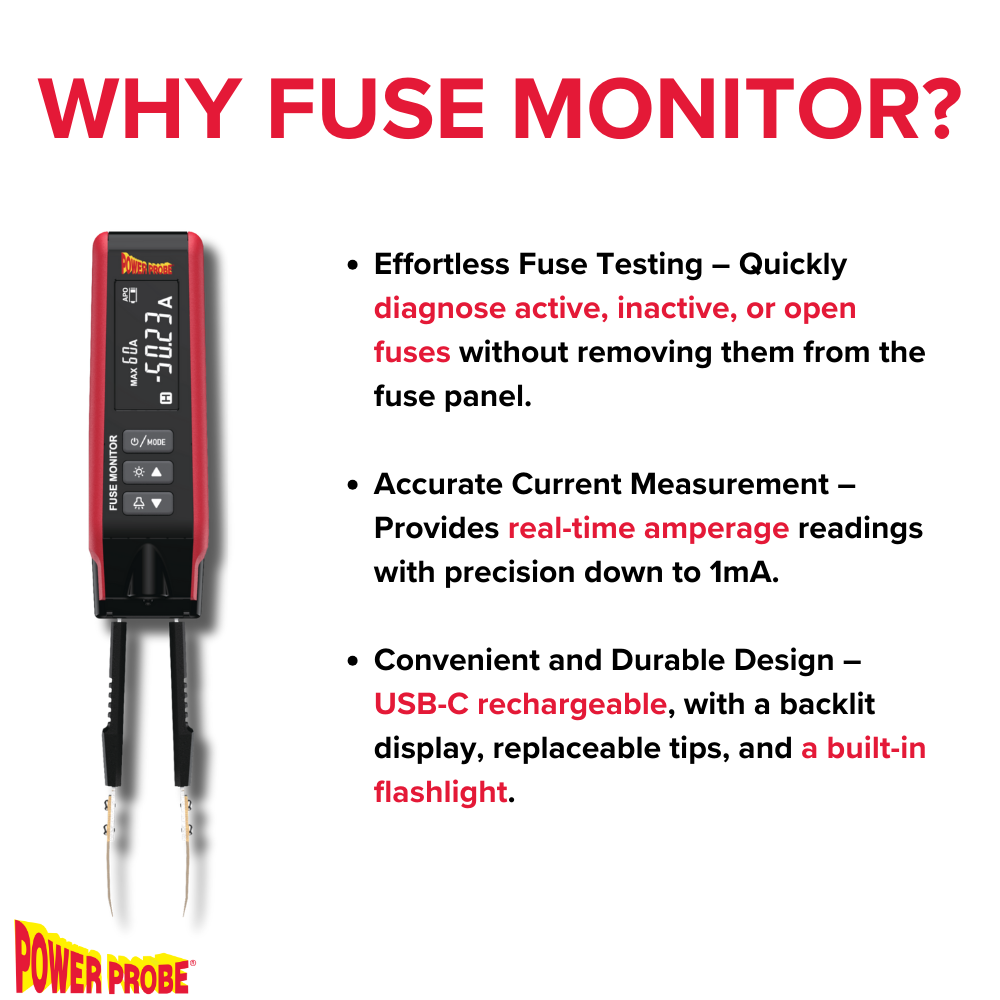

Test the fuse. See the current. Know the status.

Direct fuse current measurement

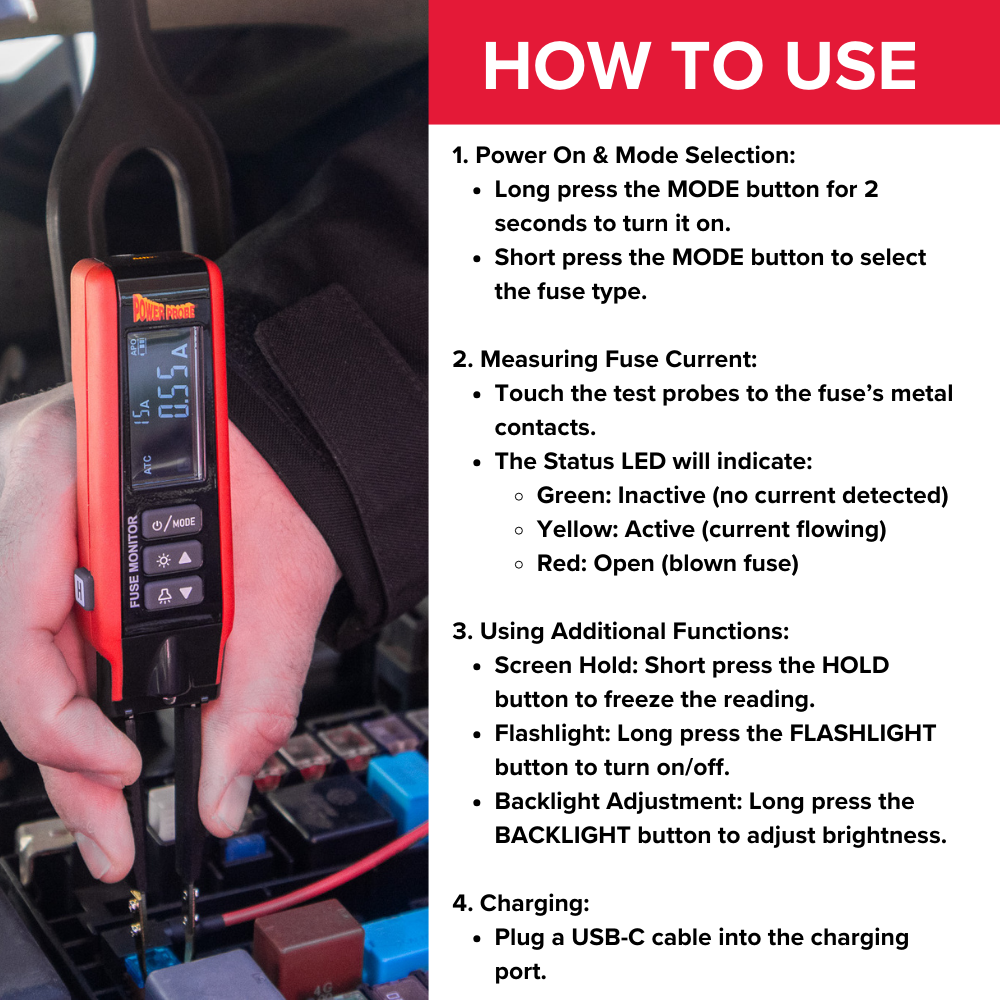

Touch the probes to the fuse test points to measure current without adding a separate ammeter to the circuit. Select MINI, ATC/ATO, or MAXI mode to match the fuse being tested, with measurements displayed to 0.01A resolution.

Color-coded fuse status

Get an immediate visual indication of circuit activity with green, yellow, and red status indicators. Green indicates less than 0.05A, yellow indicates current flowing through the fuse, and red indicates the fuse may be open or blown.

Built for hands-on diagnostics

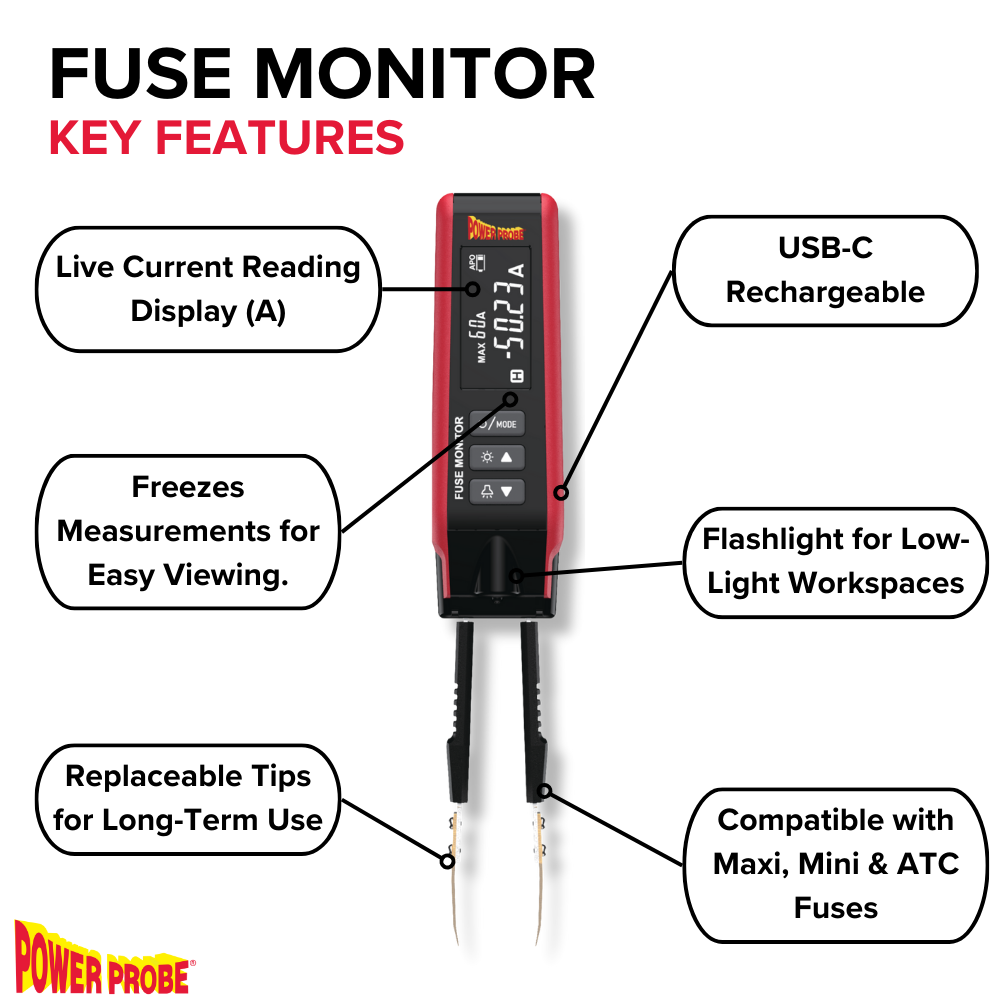

Keep the reading visible wherever you work with Auto Hold, rotational display detection, magnetic mounting, adjustable backlighting, and a built-in flashlight.
