POWER PROBE · PP3PFLS01

Circuit Tester

Circuit Tester

PowerFlow™ diagnostics with maximum connection flexibility.

$447.50
$447.50
Sale Sold out
Shipping calculated at checkout.
  • Load-test circuits under real operating conditions to uncover excessive voltage drop, corrosion, weak grounds, and high-resistance faults.
  • Apply power or ground and perform advanced electrical measurements from the same handheld diagnostic platform.
  • - Connect to more terminals and hard-to-reach test points with 1 ft., 3 ft., and 6 ft. leads, small and large piercing probes, and multiple adapter sets. Power Probe
Product description

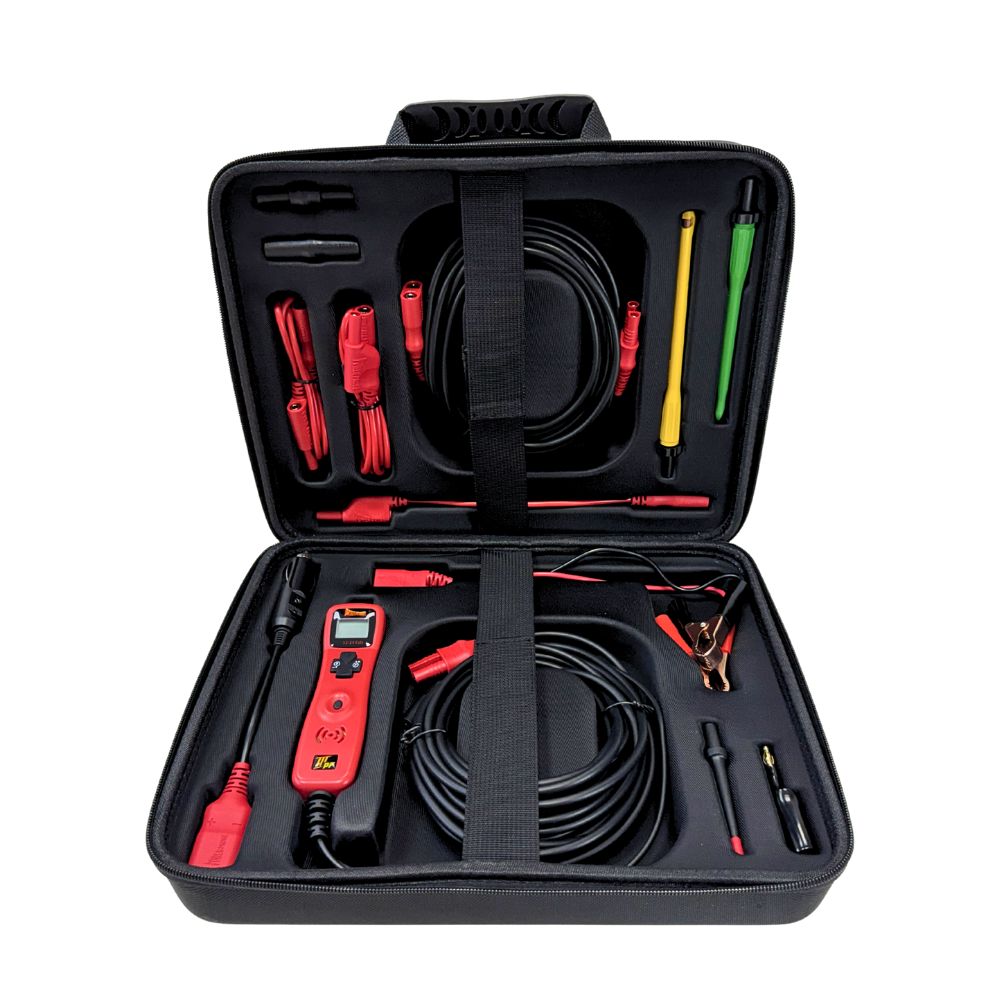

The Power Probe 3 PowerFlow Diagnostic Lead Set Kit goes beyond basic circuit testing by actively applying a controlled load to verify wiring integrity under real-world conditions. Measure voltage, resistance, power components with battery voltage or ground, and identify hidden wiring faults faster with PowerFlow™ Technology. The included lead set expands testing flexibility with PowerLock™ connectivity and a secure 4mm banana jack ground system. Featuring Min/Max capture, a built-in latch function, and a 10A self-resetting circuit breaker, this kit helps technicians diagnose electrical problems with greater speed, accuracy, and confidence.



Technical specifications
  • Operating system voltage: 12V / 24V DC
  • DC voltmeter range: 0–60V DC
  • Voltmeter resolution: 0.1V
  • Power Probe® mode: 12V / 24V DC power or ground output
  • PowerFlow™ load: 25Ω
  • PowerFlow™ output: Up to 0.5A at 12V / 1.0A at 24V
  • Resistance range: 0Ω–25kΩ
  • Voltage and polarity indication: Red/green LEDs with audible tones
  • Polarity threshold: ±0.5V
  • Tone frequency response: 10Hz to >10kHz
  • Peak-to-Peak range: 0–60V DC
  • Peak Detector mode: Positive and negative peak detection
  • Circuit protection: 10A solid-state, self-resetting circuit breaker
  • Standard power-cable length: 20 ft. Power Probe
What’s included
  • 1× PP3PF Circuit Tester — Red
  • 1× 20 ft. power cable with battery clips
  • 1× 20 ft. extension cable
  • 1× Probe tip
  • 1× Battery clip set
  • 1× Alligator clip
  • 1× DC outlet adapter
  • 1× 1 ft. test lead
  • 1× 3 ft. test lead
  • 1× 6 ft. test lead
  • Small piercing probe
  • Large piercing probe
  • Adapter sets
  • 1× Carry case Power Probe
User Manual
View user manual (opens in a new tab)
Shipping & returns

Shipping policy

Returns policy

View full details

Load the circuit. Reach the connection. Find the fault.

PowerFlow™ circuit loading

Test both the positive and negative sides of a circuit under load to expose wiring problems that ordinary voltage readings can miss.

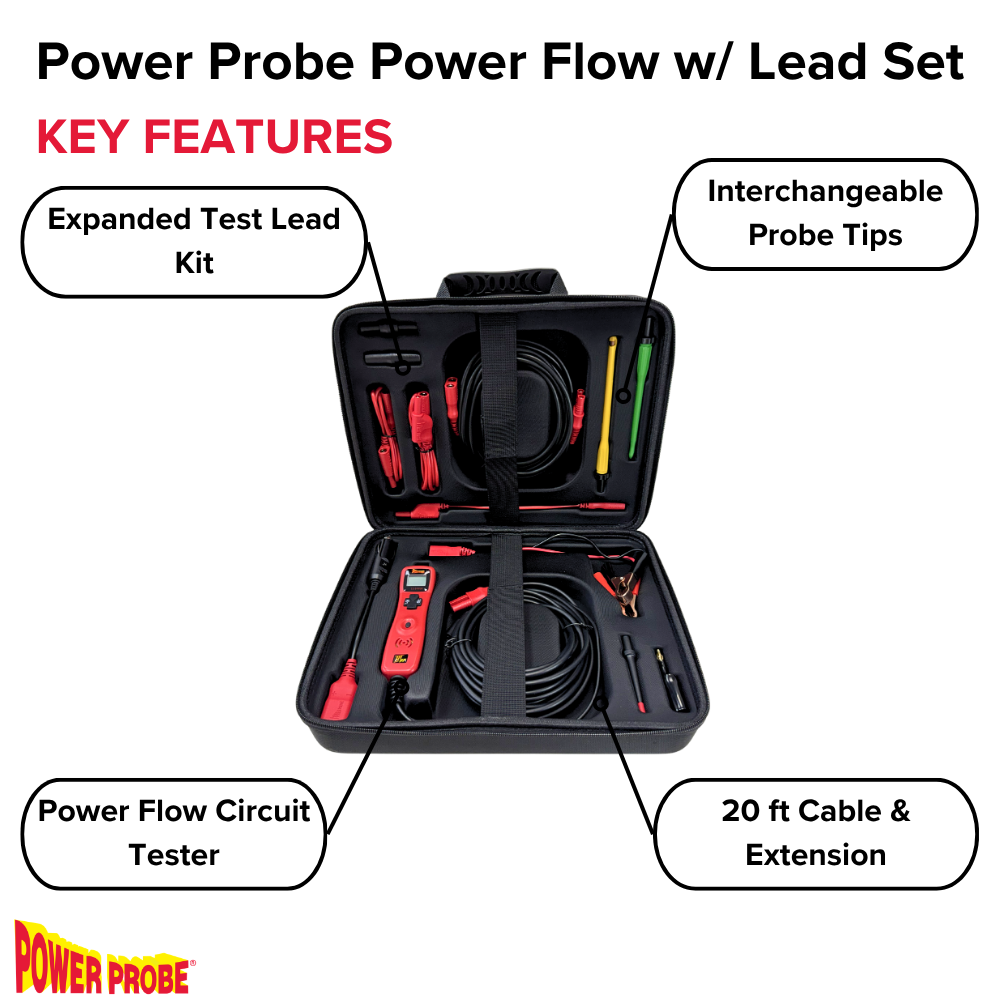

Complete diagnostic lead system

Reach more connectors, wires, and test points with 1 ft., 3 ft., and 6 ft. leads, small and large piercing probes, and adapter sets designed for greater connection flexibility.

Power, ground & advanced measurement

Supply 12V or 24V power or ground at the probe while also measuring voltage, resistance, signal activity, and intermittent electrical conditions from one diagnostic tool. Power Probe
