POWER PROBE · PP3PFREDAS

Circuit Tester

Circuit Tester

PowerFlow™ circuit testing with added reach and portability.

$319.95
$319.95
Sale Sold out
Shipping calculated at checkout.

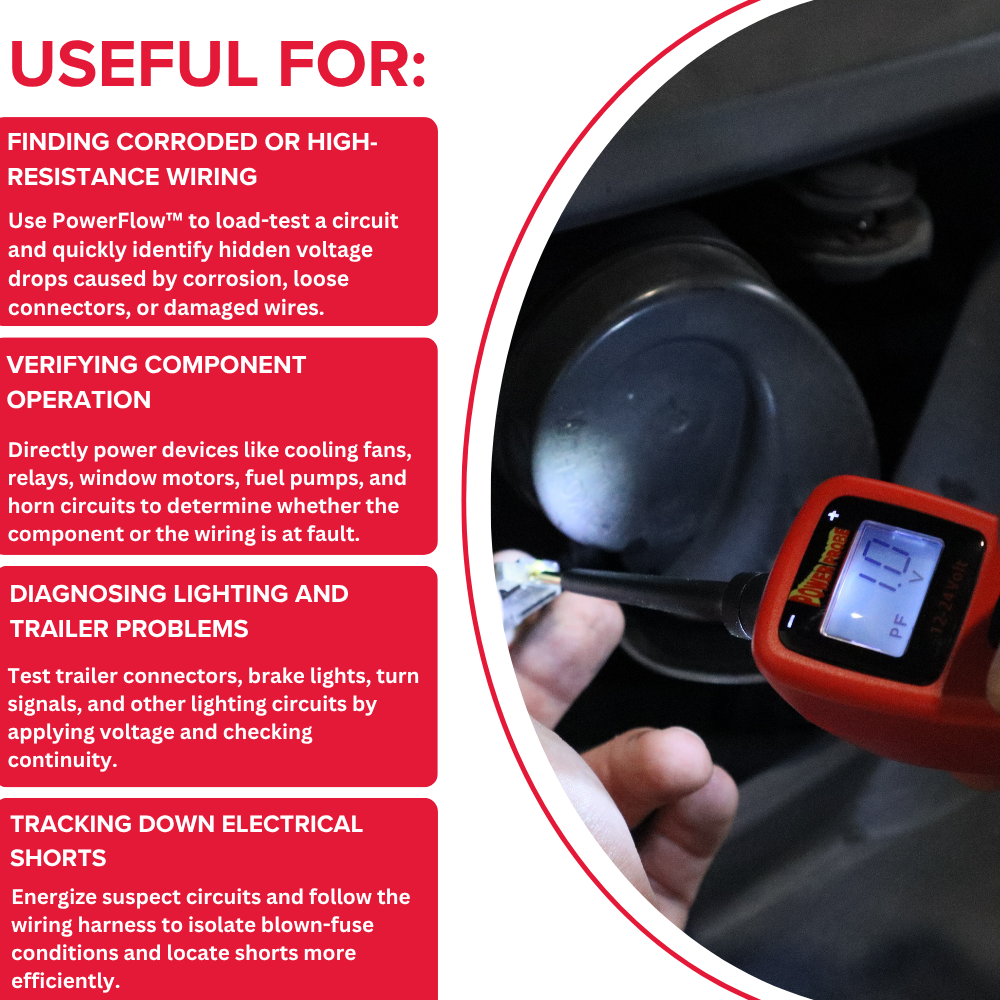

  • Expose faults standard voltage checks can miss by loading positive or negative circuits to reveal excessive voltage drop, high resistance, corrosion, and weak grounds.
  • Apply 12V or 24V power or ground directly from the probe to activate and test electrical components on the spot.
  • Work bumper to bumper with greater flexibility using the additional 20 ft. extension cable, DC outlet adapter, and protective carrying case. Power Probe
Product description

The Power Probe 3 PowerFlow Professional Diagnostic Kit combines advanced circuit testing with essential accessories for faster, more accurate electrical diagnostics. Power components with battery voltage or ground, measure voltage up to 60V, test resistance up to 25kΩ, and verify wiring integrity using PowerFlow™ Technology. By applying a controlled load to circuits, the PP3PF helps expose voltage drops, weak connections, corrosion, and damaged wiring that traditional testers may miss. Complete with a 20 ft extension, adapters, battery clips, and a protective carrying case, this kit delivers the versatility professionals need for real-world troubleshooting.

Technical specifications
  • Operating system voltage: 12V / 24V DC
  • DC voltmeter range: 0–60V DC
  • Voltmeter resolution: 0.1V
  • Power Probe® mode: 12V / 24V DC power or ground output
  • PowerFlow™ load: 25Ω
  • PowerFlow™ output: Up to 0.5A at 12V / 1.0A at 24V
  • Resistance range: 0Ω–25kΩ
  • Voltage and polarity indication: Red/green LEDs with audible tones
  • Polarity threshold: ±0.5V
  • Tone frequency response: 10Hz to >10kHz
  • Peak-to-Peak range: 0–60V DC
  • Peak Detector mode: Positive and negative peak detection
  • Circuit protection: 10A solid-state, self-resetting circuit breaker
  • Standard power-cable length: 20 ft. Power Probe

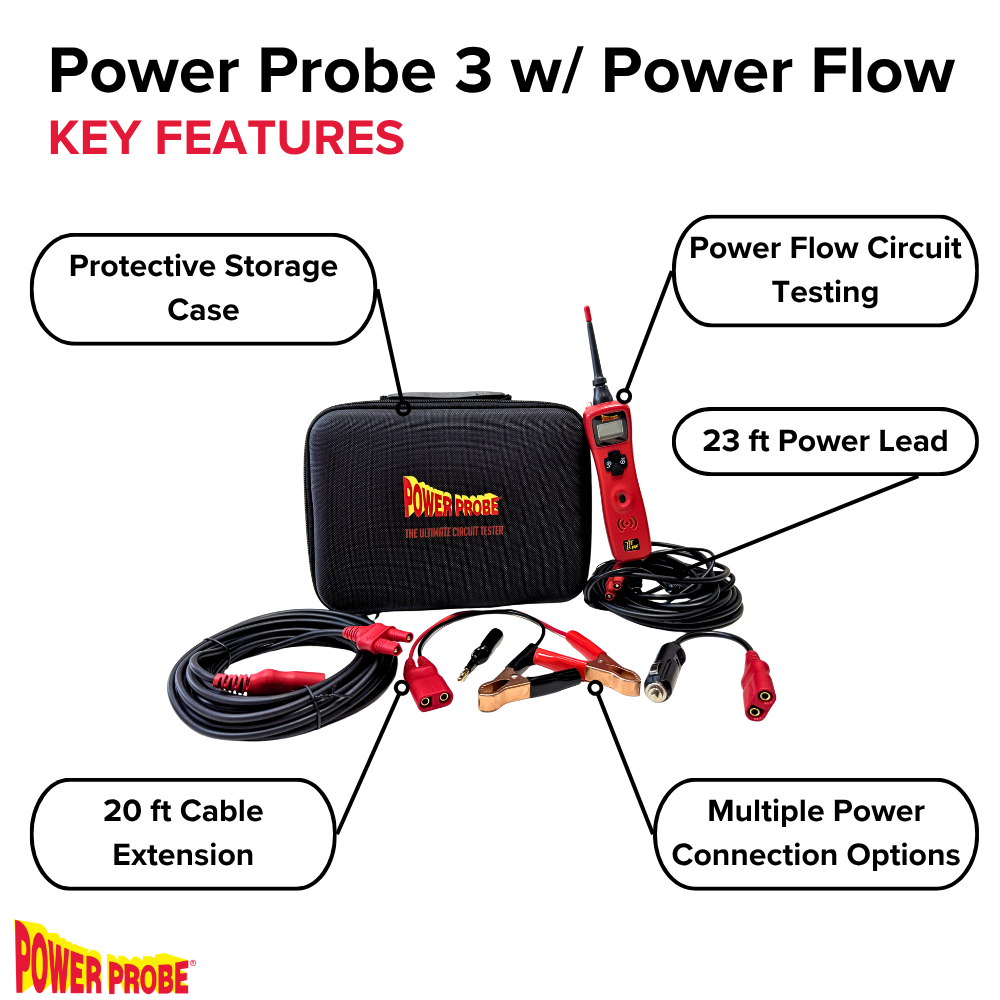

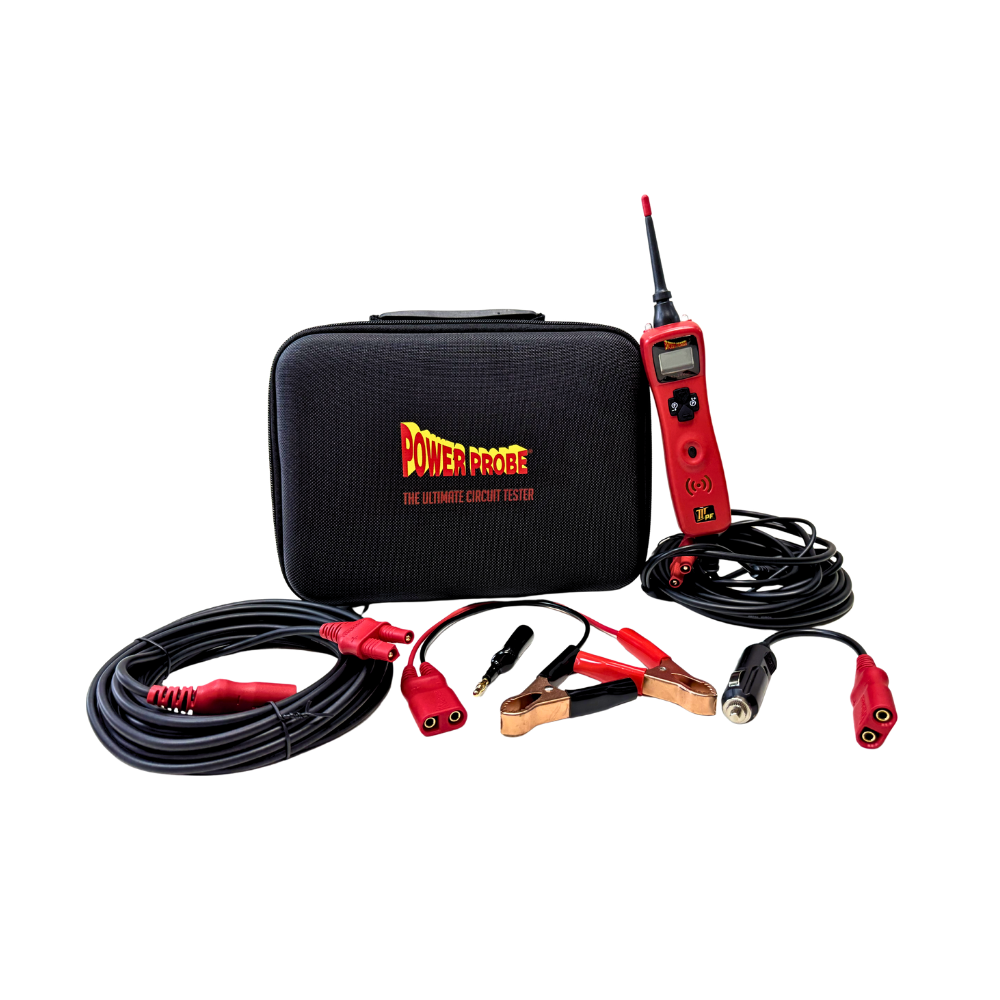

What’s included
  • 1× PP3PF Circuit Tester — Red
  • 1× 20 ft. power cable with battery clips
  • 1× 20 ft. extension cable
  • 1× Probe tip
  • 1× Battery clip set
  • 1× Alligator clip
  • 1× DC outlet adapter
  • 1× Carry case Power Probe
User Manual
View user manual (opens in a new tab)
Shipping & returns

Shipping policy

Returns policy

View full details

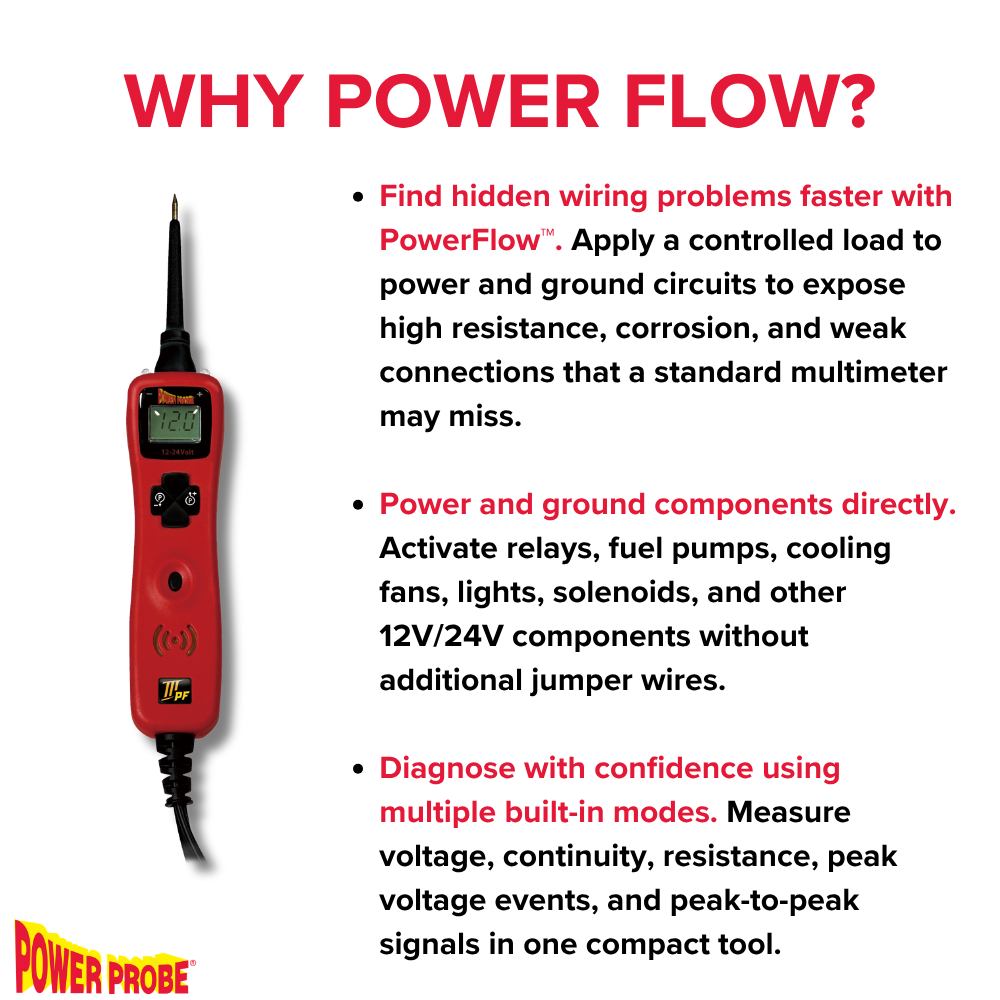

Load-test farther. Diagnose with confidence.

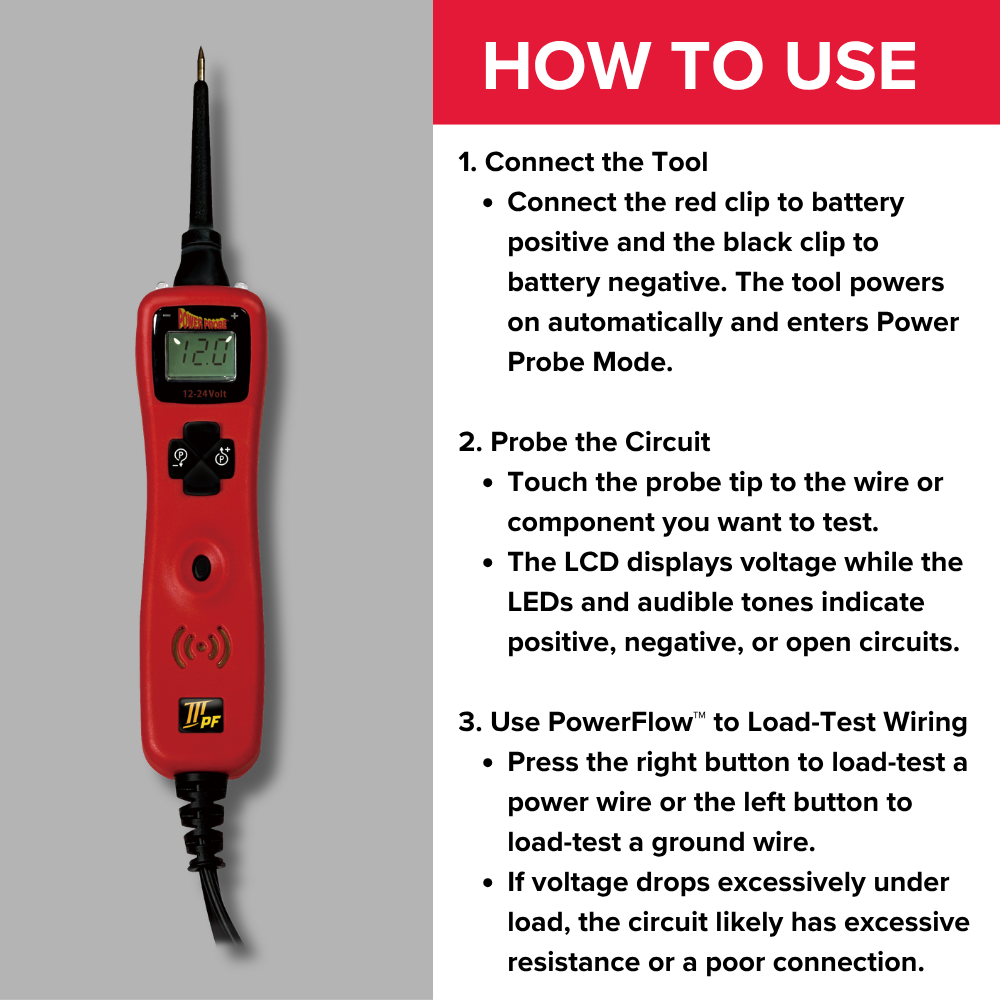

PowerFlow™ circuit loading

Apply a controlled load to the power or ground side of a circuit to expose high-resistance connections and voltage drop that may remain hidden during a standard no-load test.

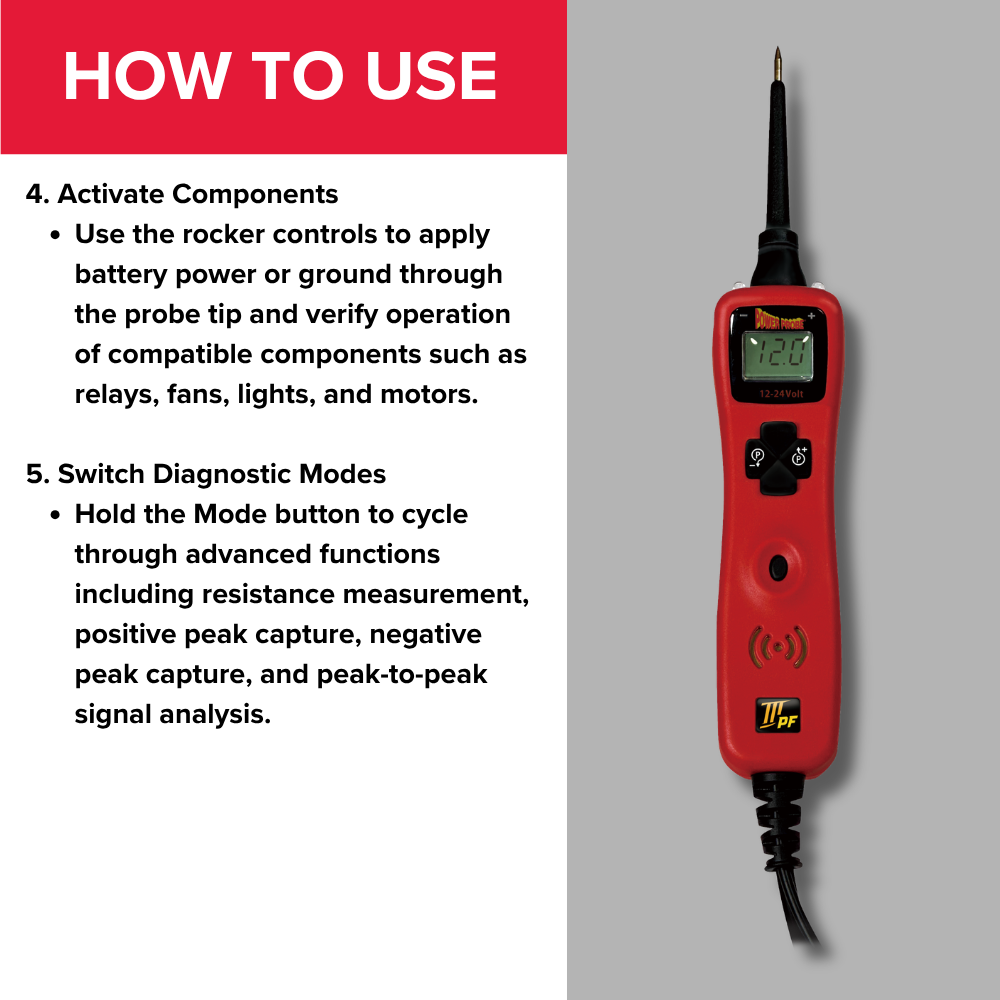

Power & ground at the tip

Supply 12V or 24V battery power or ground directly through the probe to activate relays, motors, lights, solenoids, and other electrical components.

Extended diagnostic reach

Take PowerFlow testing farther around the vehicle with an additional 20 ft. extension cable and DC outlet adapter, then keep the complete setup organized in the included carrying case. Power Probe
