POWER PROBE · BUNDLE

Circuit Tester Bundle

Circuit Tester Bundle

$259.90
$364.85 $259.90
Sale Sold out
Shipping calculated at checkout.

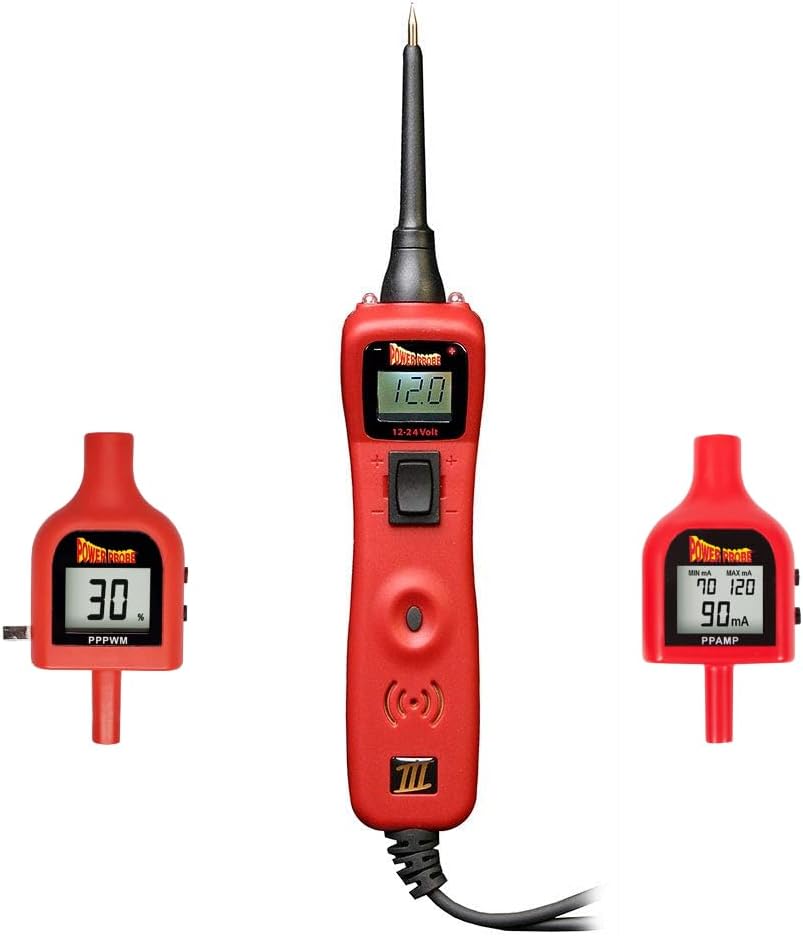

  • Complete Diagnostic Solution: Includes the Power Probe 3CS Circuit Tester, AMP Tip, and PWM Tip, offering a full range of testing capabilities for automotive and electrical systems.

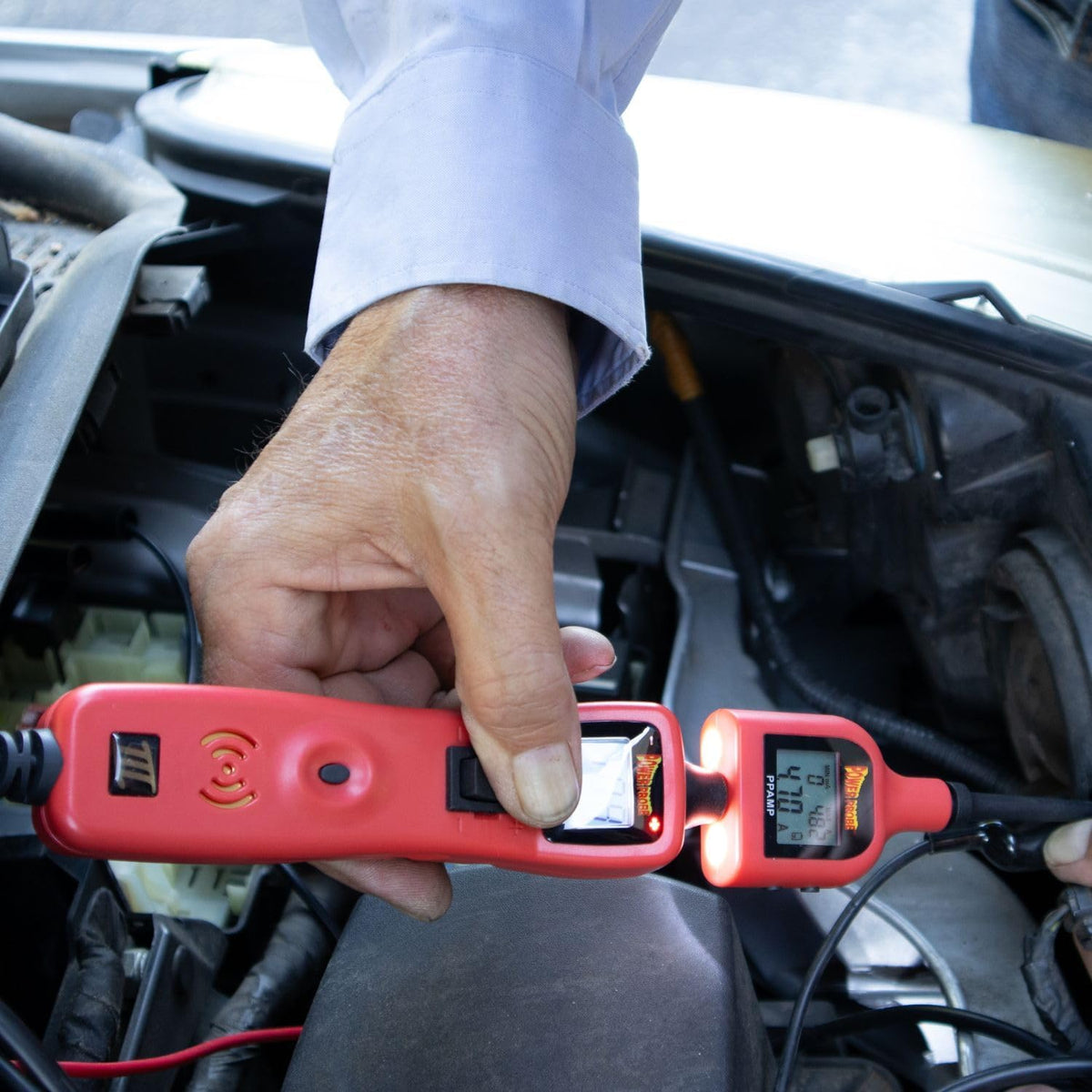

  • Accurate Current Measurement: The AMP Tip measures live current from 1mA to 10A, with easy-to-read min/max readings on a backlit LCD screen, ensuring reliable diagnostics without overloading circuits.

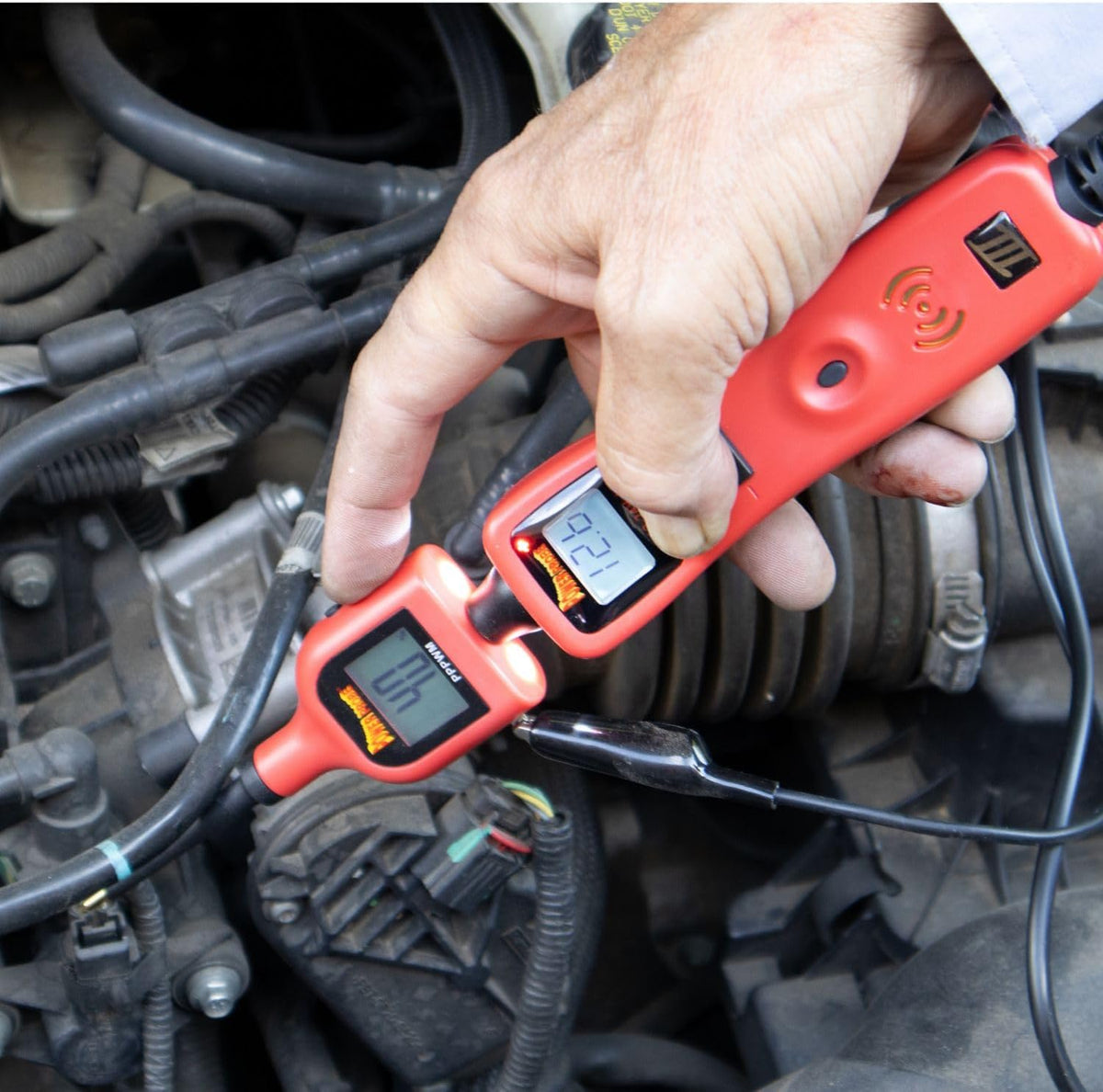

  • Versatile Pulse Width Modulation Testing: The PWM Tip allows you to adjust the duty cycle from 5% to 100%, making it ideal for diagnosing fan circuits and other PWM-based systems in 12V to 24V applications.
Product description

Unlock professional-grade diagnostics with the Power Probe 3CS Circuit Tester Bundle. This powerful bundle includes the Power Probe 3CS, an essential tool for automotive and electrical troubleshooting, along with the AMP Tip and PWM Tip to expand your testing capabilities. The AMP Tip enables precise live current measurement from 1mA to 10A, while the PWM Tip allows for quick detection and adjustment of pulse width modulation (PWM) signals. Perfect for mechanics, technicians, and electrical professionals, this bundle is designed to ensure accurate, efficient testing of electrical systems, including fans, circuits, and more.

Technical specifications

• DC 0 to +70V +1 Digit
• P-P 0 to +70V
The frequency response of tone pass through
• 10Hz to greater than 10 kHz
PP Display
• 15 Hz Square Wave
• 35 Hz Sine Wave
Power Probe® Mode – Continuity to ground
• First level – Display is enabled less than 20 K Ω
• The second level – Green LED is enabled less than 600 Ω
– & +Peak Detector Response
• Single event capture less than 200ms pulse width
• Repetitive events less than 1ms pulse width
Peak to Peak Mode
• 0 to + 70 + 1 Digit
• 4Hz to over 500kHz Square Wave input
• 4Hz to over 250kHz Sine Wave input
• The threshold for PPAC/Audible passthrough
• Circuit Breaker 8 amp thermal response – Manual reset
• AC voltage leakage test (alternator)

What’s included

• Power Probe® 3 with standard 20 ft (6 m) Power Cable
• 3 in (8 cm) Probe Tip
• Battery Clip Set
• Instruction Manual
• Power Probe AMP Adapter Tip
• Power Probe PWM Adapter Tip

User Manual
View user manual (opens in a new tab)
Shipping & returns

Shipping policy

Returns policy

View full details

One probe. Multiple ways to diagnose electrical problems.

Voltage, polarity & continuity

See circuit voltage on the LCD while red and green LEDs quickly identify polarity, and check continuity in wires and components.

Power & ground at the tip

Use the power switch to apply battery positive or ground through the probe tip to activate components and verify operation. The manual specifically shows applications including lights, motors, fuel pumps, solenoids, relays, and other electrical components.

Five diagnostic modes

Go beyond basic voltage testing with five modes for standard circuit testing, positive and negative peak capture, peak-to-peak measurement, and adjustable peak-detection thresholds.
