POWER PROBE · BUNDLE

Circuit Tester Bundle

Circuit Tester Bundle

$329.99
$503.80 $329.99
Sale Sold out
Shipping calculated at checkout.
  • Test voltage, polarity, continuity, and components while applying power or ground directly from the probe.
  • Get step-by-step guidance with EZ Learning and EZ Diagnostics for common electrical tests and tool functions.
  • Work farther from the battery and keep your setup organized with an additional 20 ft. extension cable, cigarette-lighter adapter, and hard carrying case.
Product description

Take your diagnostics to the next level with the Power Probe 3EZ Advanced Kit, now bundled with premium tip adapters for total access and accuracy. The PP3EZ delivers advanced electrical testing with the added benefit of EZ Learning and EZ Diagnostics Modes, ideal for technicians who want faster, more intuitive troubleshooting. With the included AMP, PWM, and Penetrator Tips, you’ll be ready for precise probing on modern automotive systems—even in corroded or hard-to-reach areas.

Technical specifications

The frequency response of tone pass through
• 10Hz to 10 kHz
PP Display
• 15 Hz Square Wave
• 35 Hz Sine Wave
Power Probe® Mode – Continuity to ground
• First level – Display is enabled less than 20 K Ω
• The second level – Green LED is enabled less than 600 Ω
– & +Peak Detector Response
• Single event capture less than 200ms pulse width
• Repetitive events less than 1ms pulse width
Peak to Peak Mode
• 0 to + 70 + 1 Digit
• 4Hz to over 500kHz Square Wave input
• 4Hz to over 250kHz Sine Wave input
• Threshold for PPAC/Audible passthrough
• Circuit Breaker 8 amp thermal response – Manual reset
OverVolt Warning (>70V)
Over Load Warning(>34Vdc)

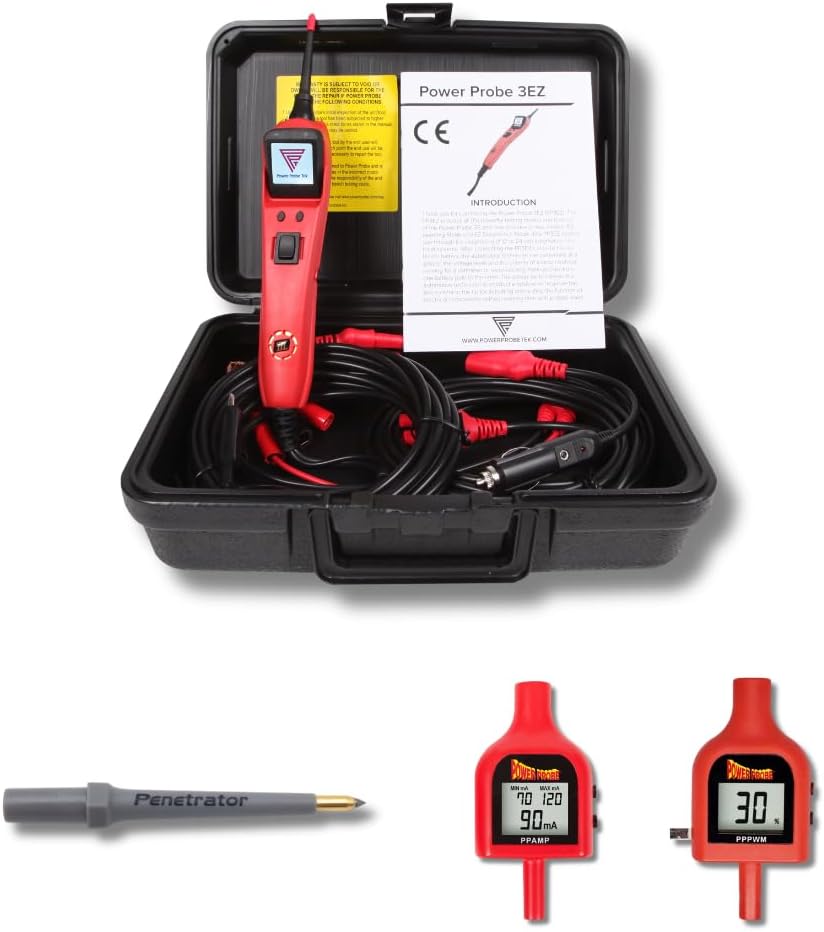

What’s included

• Power Probe® 3EZ with Standard 20 ft cable (6 m) Power Cable
• 3 In (8 cm) Probe Tip
• Battery Clip Set
• Hard Carrying Case
• Cigarette Lighter Adapter
• 20 ft (6 m) Power Cable Extension
• Instruction Manual
• Power Probe AMP Tip Adapter
• Power Probe PWM Tip Adapter
• Power Probe Penetration Tip

User Manual
View user manual (opens in a new tab)
Shipping & returns

Shipping policy

Returns policy

View full details

Advanced electrical testing with added flexibility.

EZ Learning & Diagnostics

Follow built-in guidance for operating the tool and performing common tests, including battery, charging, fuse, voltage, component, and 5V reference testing. Diagnostic procedures also provide access to supporting video content through QR codes.

Power & ground at the tip

Apply battery power or ground directly through the probe to activate components and quickly verify circuit operation. Applications include fuel pumps, motors, solenoids, lights, and other electrical components.

Multiple diagnostic modes

Measure more than basic voltage with dedicated modes for voltmeter testing, peak-to-peak readings, maximum and minimum peak capture, and adjustable AC threshold detection.
