POWER PROBE · BUNDLE

Circuit Tester Bundle

Circuit Tester Bundle

$430.00
$589.90 $430.00
Sale Sold out
Shipping calculated at checkout.
  • Advanced Diagnostics: Features dynamic component testing, voltage drop detection, and specialized testing modes including fuel injector and driver tests.

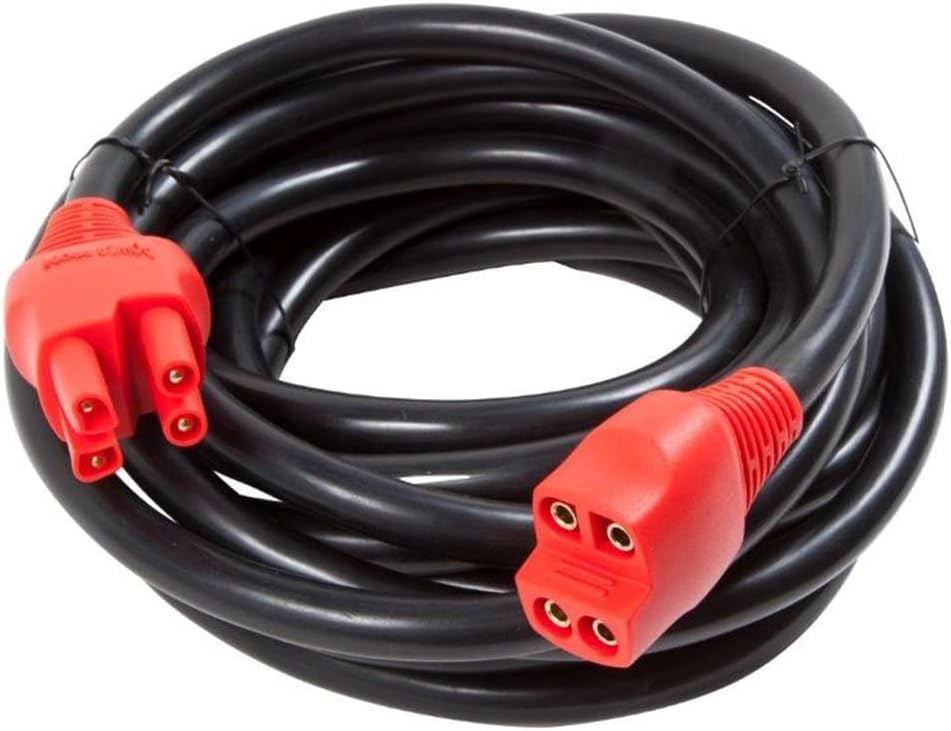

  • Extended Reach: 20-foot extension cable enables easy access to distant circuits, improving mobility and workflow efficiency.
  • Versatile Performance: Accurately measures DC voltage, AC voltage, frequency, resistance, and provides safe, controlled activation of automotive components.
Product description

Enhance your diagnostic capabilities with the Power Probe 4 and its 20-foot extension cable. Quickly diagnose automotive electrical systems with precision, perform dynamic component testing, and conveniently reach circuits across vehicles of all sizes. Featuring advanced multi-meter functions, intuitive operation, and an easy-to-read color LCD, this bundle ensures reliable testing and troubleshooting in any automotive workshop or garage.

Technical specifications

• Min Operating Voltage: 8 VDC
• Max Operating Voltage: 30 VDC
• Max Tip Voltage: 450 Volts
• Probe Tip Resistance to Ground: 130K Ohms
• Computer Safe: 0.1mA fl oating tip
• Voltage Measurement:-100 to 200 VDC / VAC (70 VAC RMS)
• Voltage Resolution: -99.99 to 99.9 V – 0.01V (10mV) 100.0 to 199.9 V – 0.1V (100mV)
• Glitch Capture: >380μS Min Pulse Width
• Power Feed Test: < 30 mA
• Resistance Measurement: 0.1 Ohms to 10K Ohms
• Frequency Measurement: 1Hz to 9999Hz
• Driver Test: 50 Ohm Pull Up on Tip
• Driver On Range: 50mV to 1V
• ECT Signal Detection:2 sec.
• Fuel Injector Mode: LED Flash @ Min 35V @ 100μS Pulse
• Red LED Response: Within 0.5V BATT V and < 10 Ohms
• Green LED Response:< 10 Ohms
• Circuit Breaker: 8 Amp Thermal – Auto Reset
• Breaker Trip Response:
• 8 Amps = No Trip
• 10 Amps = 20 min.
• 15 Amps = 6 sec.
• 25 Amps = 2 sec.
• Short Circuit = 0.3 sec.
• Operating Temperature: -20°C (-4°F) to 50°C (122°F)
• Storage Temperature: -40°C (-40°F) to 65°C (149°F)

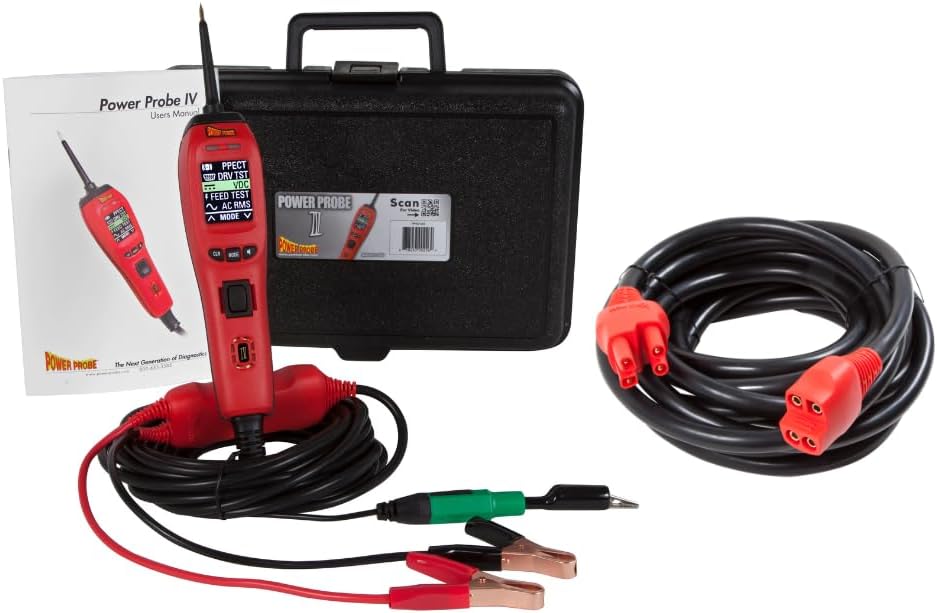

What’s included

• Convenient Carrying Case
• Alligator Clip
• Battery clip set
• 3 in (8 cm) probe tip
• Instructions manual
• 20ft extension cord

User Manual
View user manual (opens in a new tab)
Shipping & returns

Shipping policy

Returns policy

View full details

Go beyond basic circuit testing.

Eight diagnostic modes

Move from everyday voltage checks to advanced electrical analysis with dedicated modes for DC voltage, Power Feed testing, AC RMS, peak-to-peak voltage, frequency, fuel injectors, driver circuits, and ECT2000 open-circuit detection.

Power Feed Test

Measure circuit resistance and voltage drop while the circuit is powered, with battery voltage, probe-tip voltage, and total circuit resistance displayed together for faster diagnosis. This is one of the PP4 features I would emphasize heavily because it gives the product a very clear step up from the PP3 line.

Advanced component diagnostics

Analyze fuel injector operation and test electronic driver circuits without relying on basic voltage readings alone. Dedicated modes provide information such as injector on-time, inductive kick voltage, supply and ground voltage, while Driver Test supplies a current-limited signal for testing ECU-controlled circuits.
