POWER PROBE · Bundle

Circuit Tester Bundle

Circuit Tester Bundle

$398.85
$579.85 $398.85
Sale Sold out
Shipping calculated at checkout.
  • Test electrical circuits, evaluate components, and perform multiple measurements with the versatile Power Probe 4 platform.
  • Add the AMP Tip when you need current measurement, expanding the Power Probe 4 beyond its standard circuit-testing capabilities.
  • Use the PWM Tip to evaluate pulse-width-modulated signals used to control many of today's electronically managed vehicle components.
Product description

Expand your electrical diagnostic capabilities with the Power Probe 4, AMP Tip, and PWM Tip Bundle. The Power Probe 4 combines advanced circuit testing and component activation capabilities in one professional diagnostic tool, giving technicians multiple ways to evaluate automotive electrical systems from a single platform.

The included AMP Tip adds current-measurement capability, while the PWM Tip helps technicians evaluate pulse-width-modulated signals used to control many modern vehicle components. Together, they create a versatile diagnostic package for technicians working on everything from traditional circuits to increasingly complex electronic systems.

Technical specifications

• Min Operating Voltage: 8 VDC
• Max Operating Voltage: 30 VDC
• Max Tip Voltage: 450 Volts
• Probe Tip Resistance to Ground: 130K Ohms
• Computer Safe: 0.1mA fl oating tip
• Voltage Measurement:-100 to 200 VDC / VAC (70 VAC RMS)
• Voltage Resolution: -99.99 to 99.9 V – 0.01V (10mV) 100.0 to 199.9 V – 0.1V (100mV)
• Glitch Capture: >380μS Min Pulse Width
• Power Feed Test: < 30 mA
• Resistance Measurement: 0.1 Ohms to 10K Ohms
• Frequency Measurement: 1Hz to 9999Hz
• Driver Test: 50 Ohm Pull Up on Tip
• Driver On Range: 50mV to 1V
• ECT Signal Detection:2 sec.
• Fuel Injector Mode: LED Flash @ Min 35V @ 100μS Pulse
• Red LED Response: Within 0.5V BATT V and < 10 Ohms
• Green LED Response:< 10 Ohms
• Circuit Breaker: 8 Amp Thermal – Auto Reset
• Breaker Trip Response:
• 8 Amps = No Trip
• 10 Amps = 20 min.
• 15 Amps = 6 sec.
• 25 Amps = 2 sec.
• Short Circuit = 0.3 sec.
• Operating Temperature: -20°C (-4°F) to 50°C (122°F)
• Storage Temperature: -40°C (-40°F) to 65°C (149°F)

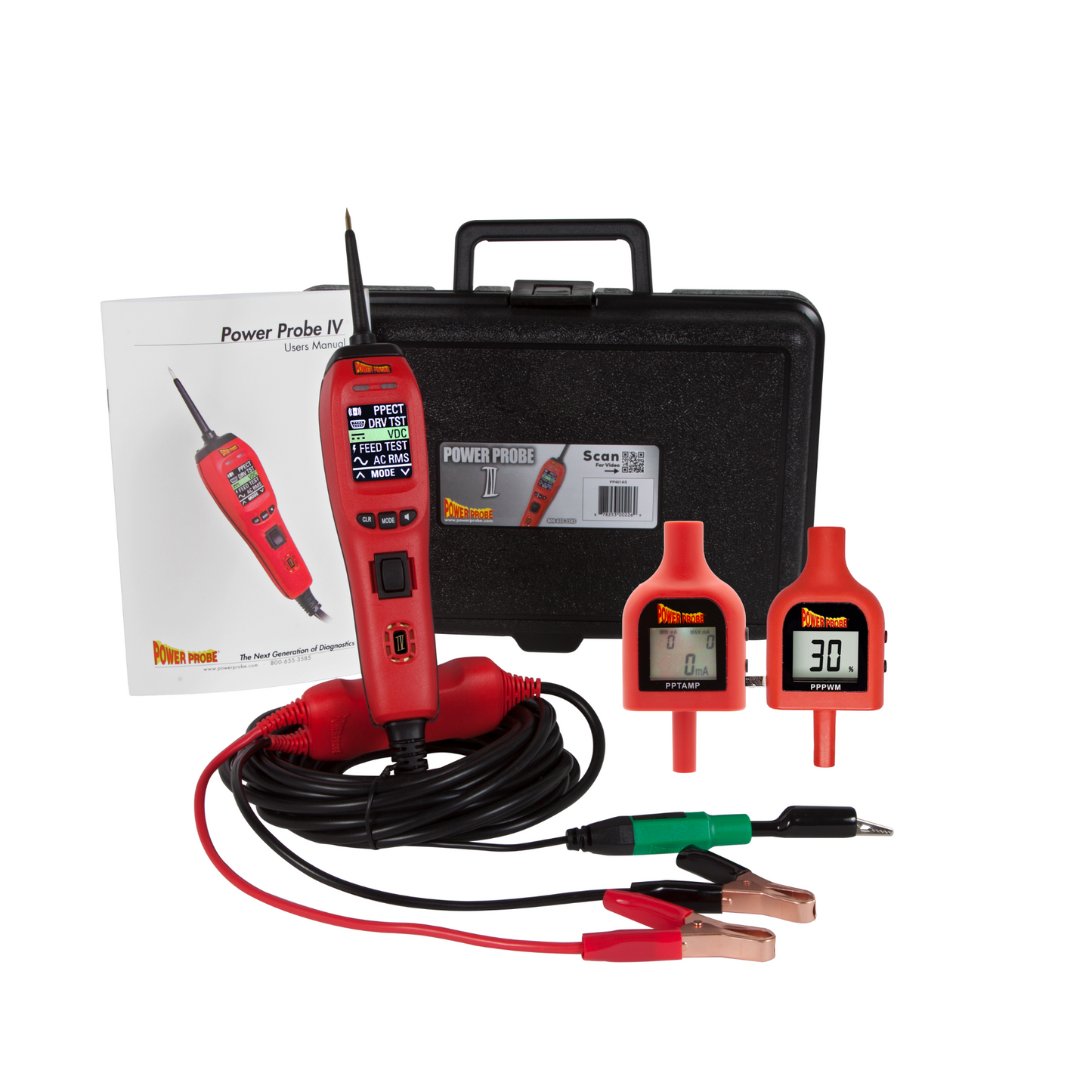

What’s included

• Convenient Carrying Case
• Alligator Clip
• Battery clipset
• 3 in (8 cm) probe tip
• Instructions manual
• Power Probe AMP Adapter Tip
• Power Probe PWM Adapter Tip

User Manual
View user manual (opens in a new tab)
Shipping & returns

Shipping policy

Returns policy

View full details

One Probe. More Ways To Diagnose

Advanced Circuit Testing

Use the Power Probe 4 to quickly investigate automotive electrical systems, check circuit conditions, and activate components directly from the probe. Multiple diagnostic modes make it a versatile foundation for everyday electrical troubleshooting.

AMP Tip

Turn the Power Probe 4 into an expanded current-testing solution with the PPAMPTIP. The accessory adds current-measurement capability directly at the probe, giving technicians another valuable measurement without having to switch diagnostic platforms.

PWM Tip

Use the PPPWMTIP to evaluate pulse-width-modulated signals found throughout modern automotive systems. It gives technicians an additional way to investigate electronically controlled components and determine how a circuit is being commanded.
