POWER PROBE · PPINT500

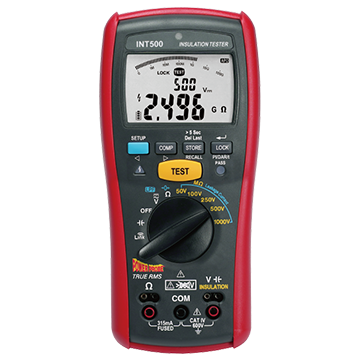

True-RMS Multimeter and 1kV Insulation Tester

True-RMS Multimeter and 1kV Insulation Tester

Assess insulation. Verify connections. Keep the results.

$796.95
$796.95
Sale Sold out
Shipping calculated at checkout.
  • Evaluate insulation condition with dedicated resistance and diagnostic tests.
  • Quickly compare insulation and earth-bond resistance against your selected thresholds.
  • Save test results for later review and download stored data via Bluetooth.
Product description

The INT500 by Power Probe® is a comprehensive solution designed to streamline your electrical testing workflow. Combining the functionality of an advanced insulation tester with a versatile TRMS multimeter, the INT500 empowers you to perform a wide range of safety and performance checks with unmatched precision and eficiency.

Technical specifications

• Large White LED backlight display with bar graph and dual reading display
• Auto Backlight (can be disabled)
• Insulation test
- 50v, 100v, 250v, 500v, 1000v
- Up to 200G
- Polarization Index (Pl)
- Dielectric Absorption Ratio(DAR)
- Timed Insulation Test (IJp to 40 minutes)
• Earth-bond Resistance (Continuity)
- 0.01 to 40
- 20mA / 200mA mode (selectable)
- Automatic bi-directional test (show the higher one)
• 600V DC & AC (TRMS) measurement
- Low-pass Filter (LPF)
• 0.1nF to 10gF Capacitance measurement
• COMPARE (Pass/Fail) Function
- Available for Insulation Test and Earthbond Resistance
- 2 color LED Indicator (Green / Red) & Sounds (Continuous Beep / Beep twice)
• Store / Recall Function
- 1500 records for each function
• Bluetooth connection with Power Probe® LINK APP

What’s included

• Remote Probe
• Test leads
• Alligator clips
• Holster with built-in magnetic

User Manual
View user manual (opens in a new tab)
Shipping & returns

Shipping policy

Returns policy

View full details

A clearer picture of insulation performance

Advanced insulation testing

Assess insulation with Polarization Index (PI), Dielectric Absorption Ratio (DAR), and timed test modes.

Visual result comparison

Set resistance thresholds and view a green or red indicator to quickly identify results that meet your criteria.

Memory & Bluetooth

Store up to 1,500 recordings per function, recall results on the meter, and download saved data wirelessly.
