POWER PROBE · BUNDLE

Master Combo Kit Bundle

Master Combo Kit Bundle

$640.95
$920.80 $640.95
Sale Sold out
Shipping calculated at checkout.

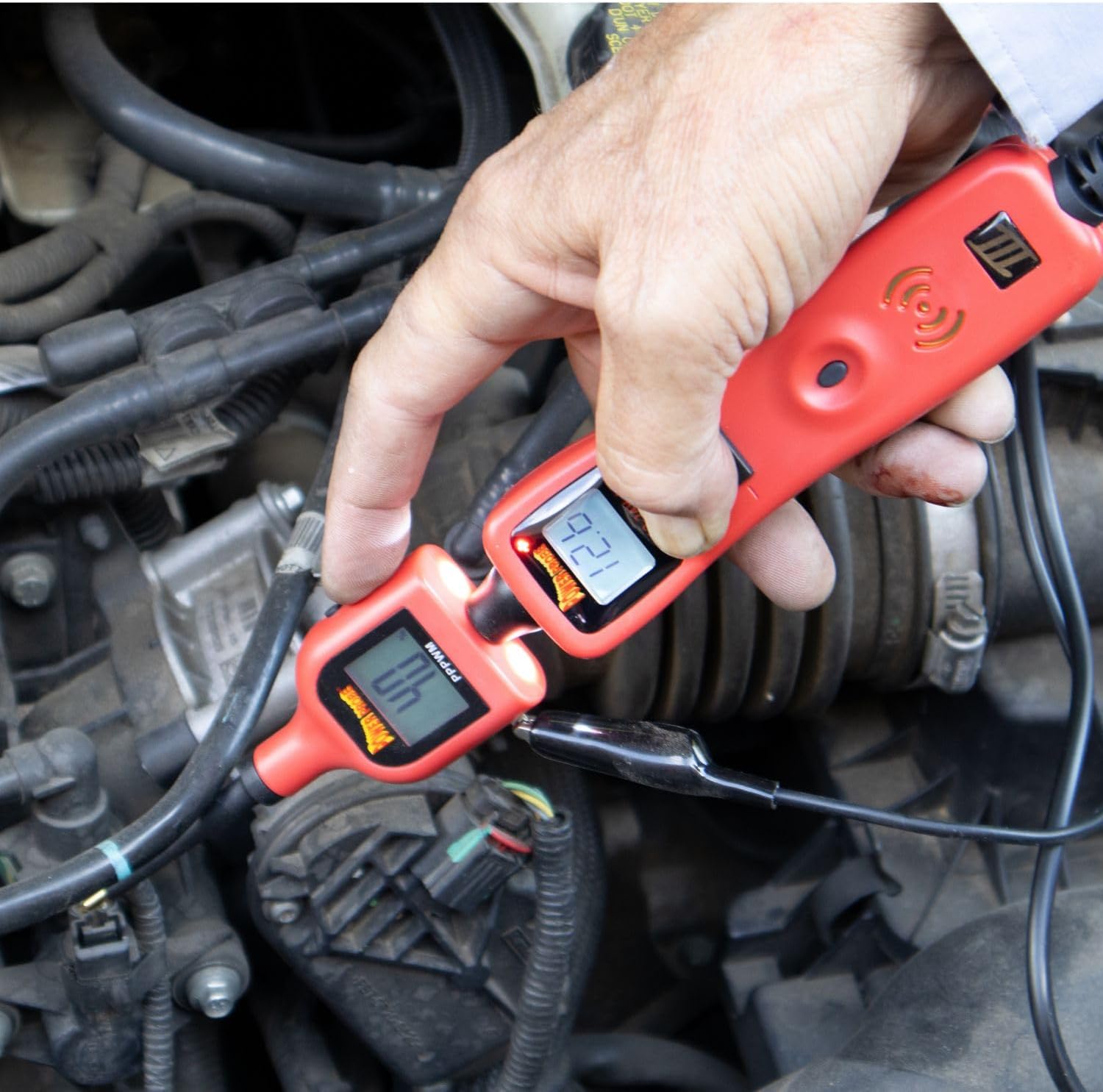

  • Test motors, lights, relays, sensors, and fuel injectors while supplying power or ground directly from the PP4.

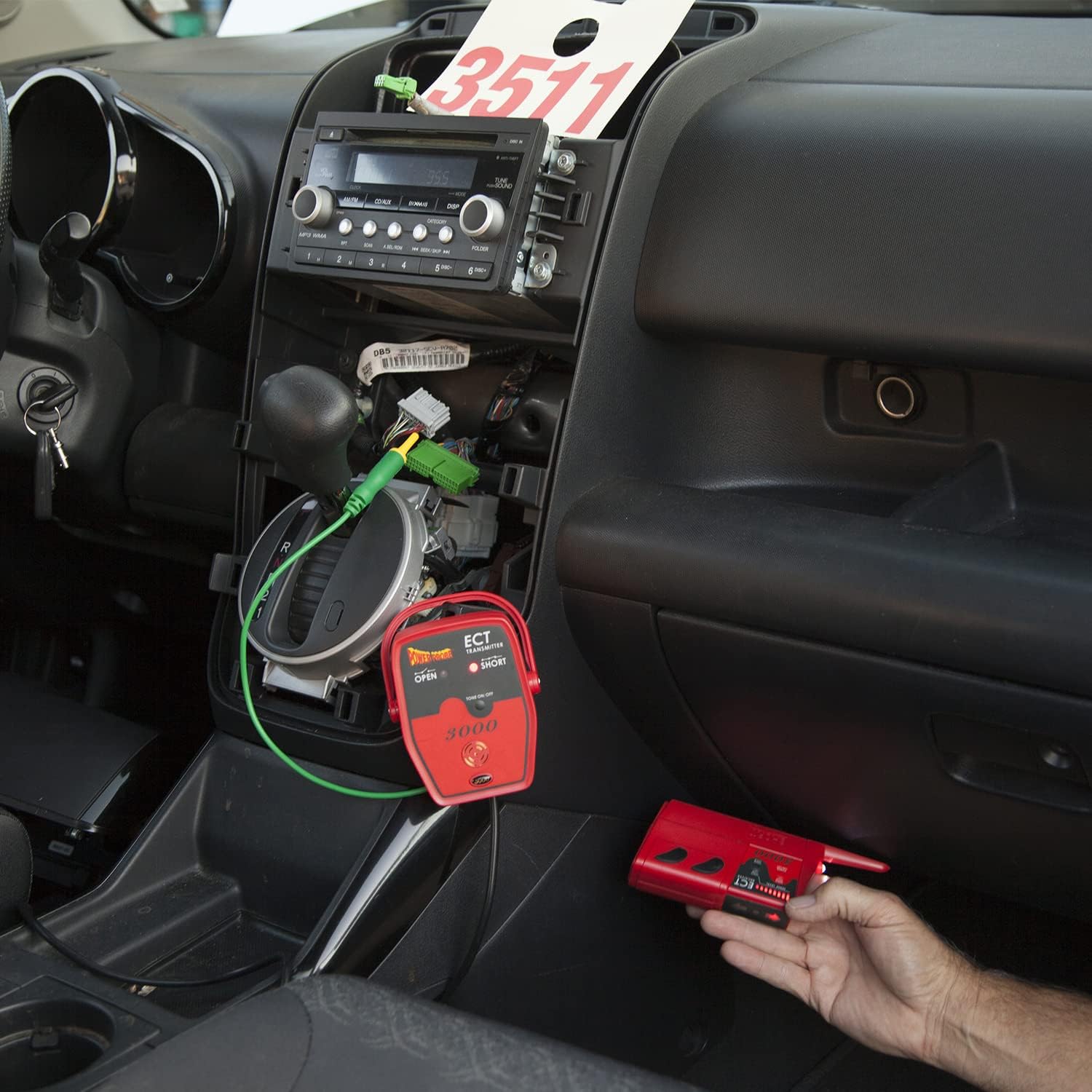

  • Trace short and open circuits with the included ECT3000 transmitter and receiver, often without removing panels, carpet, or molding.

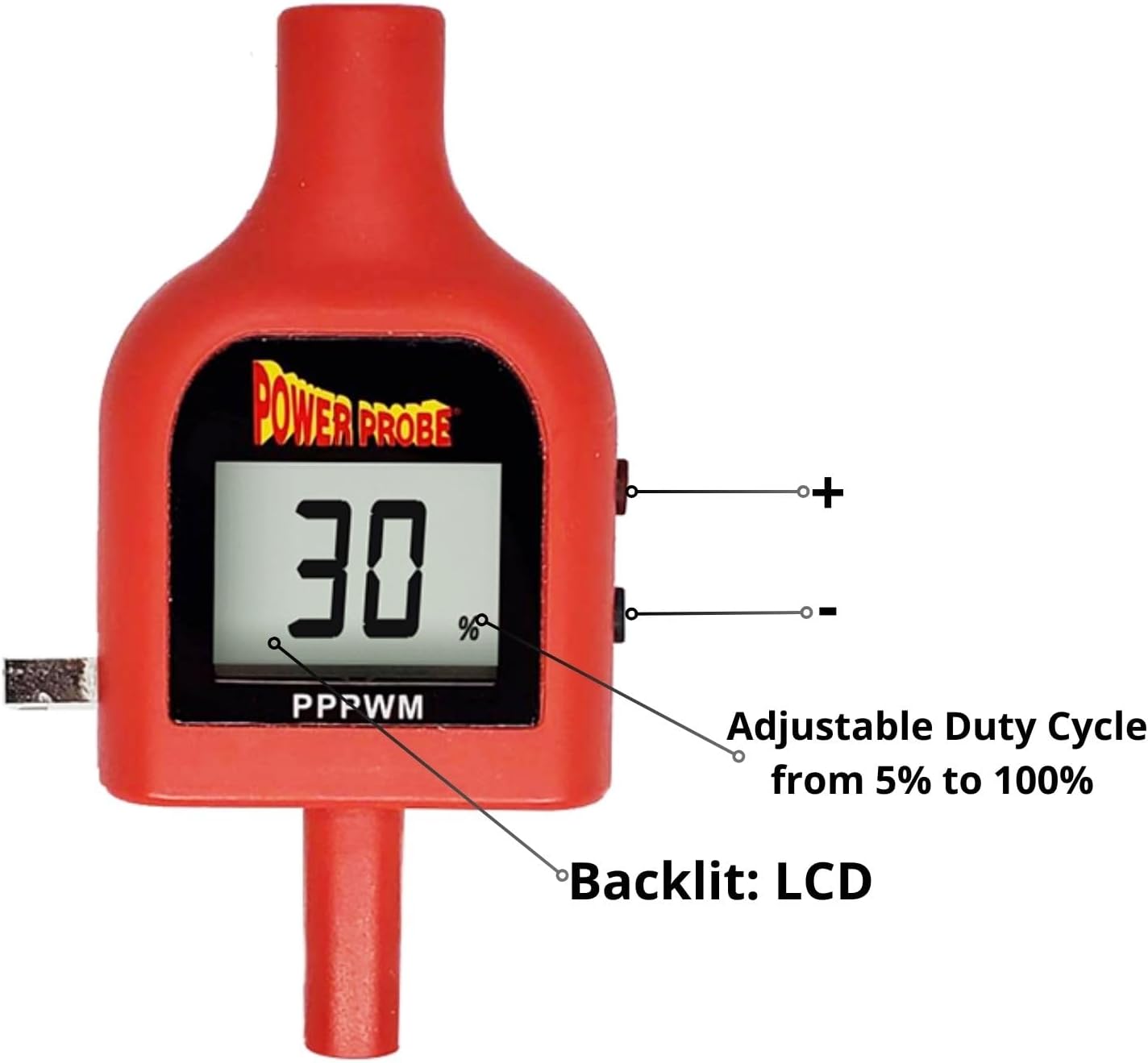

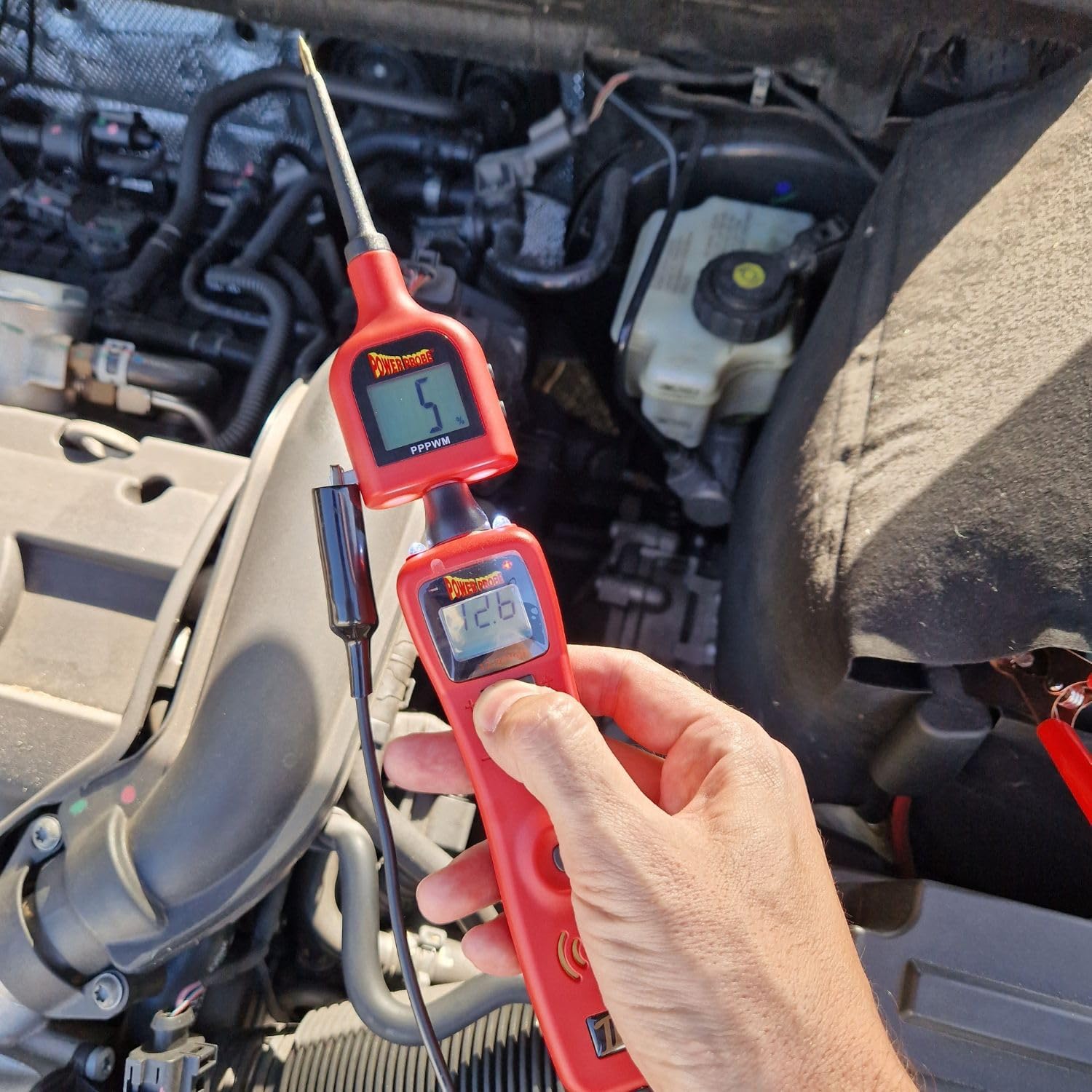

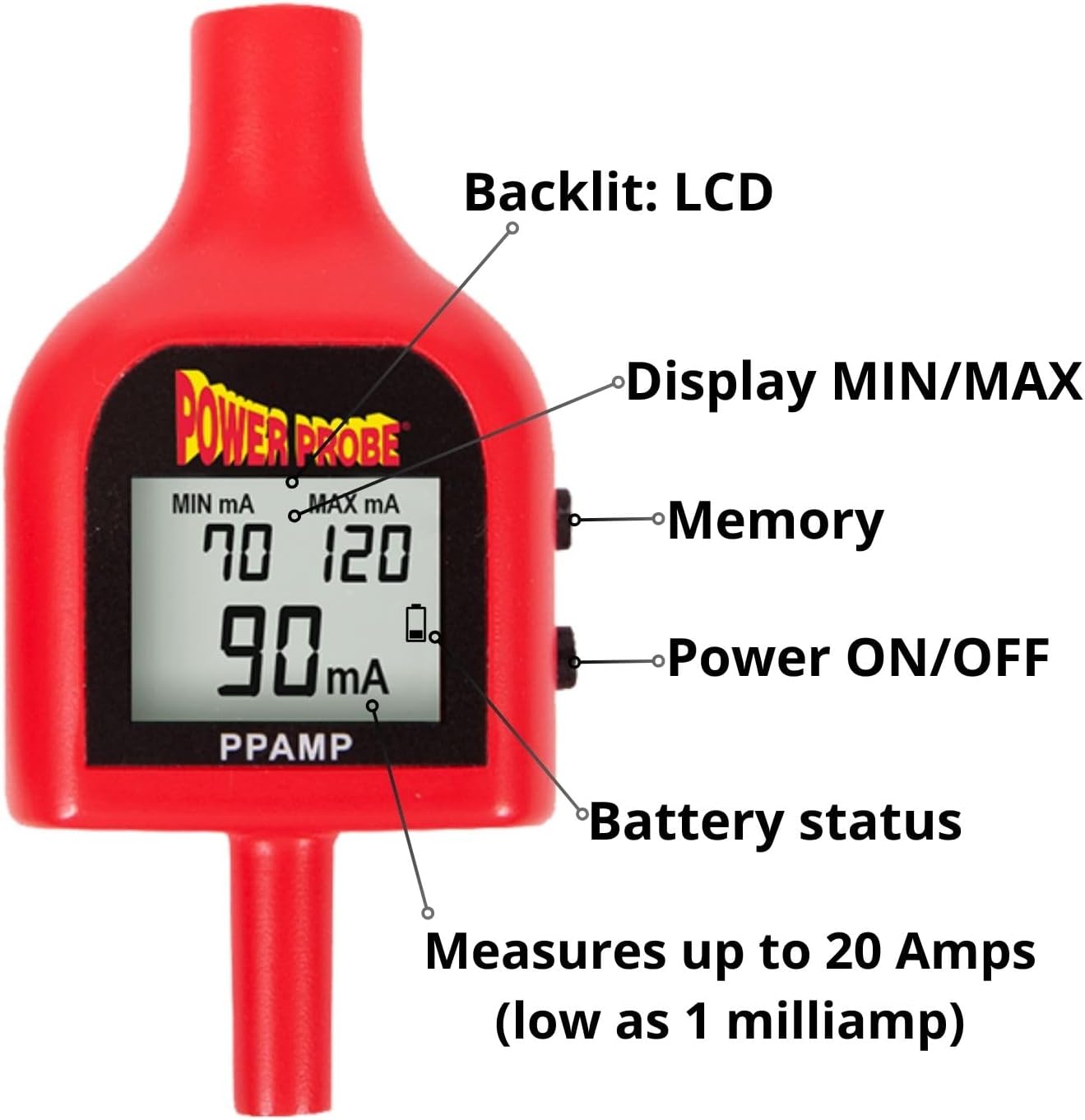

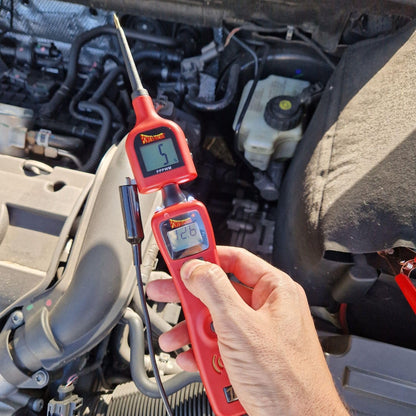

  • PWM Tip Adapter: Test pulse width modulated signals common in today’s sensors and actuator systems. AMP Tip Adapter: Perfect for accessing AMP-style terminals inside sealed connectors without damaging pins or housing.
Product description

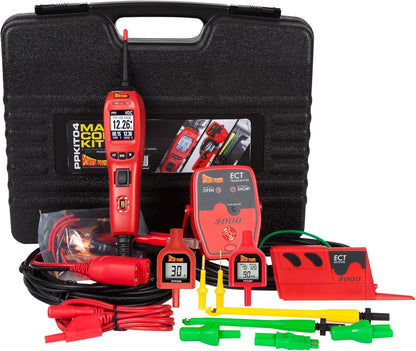

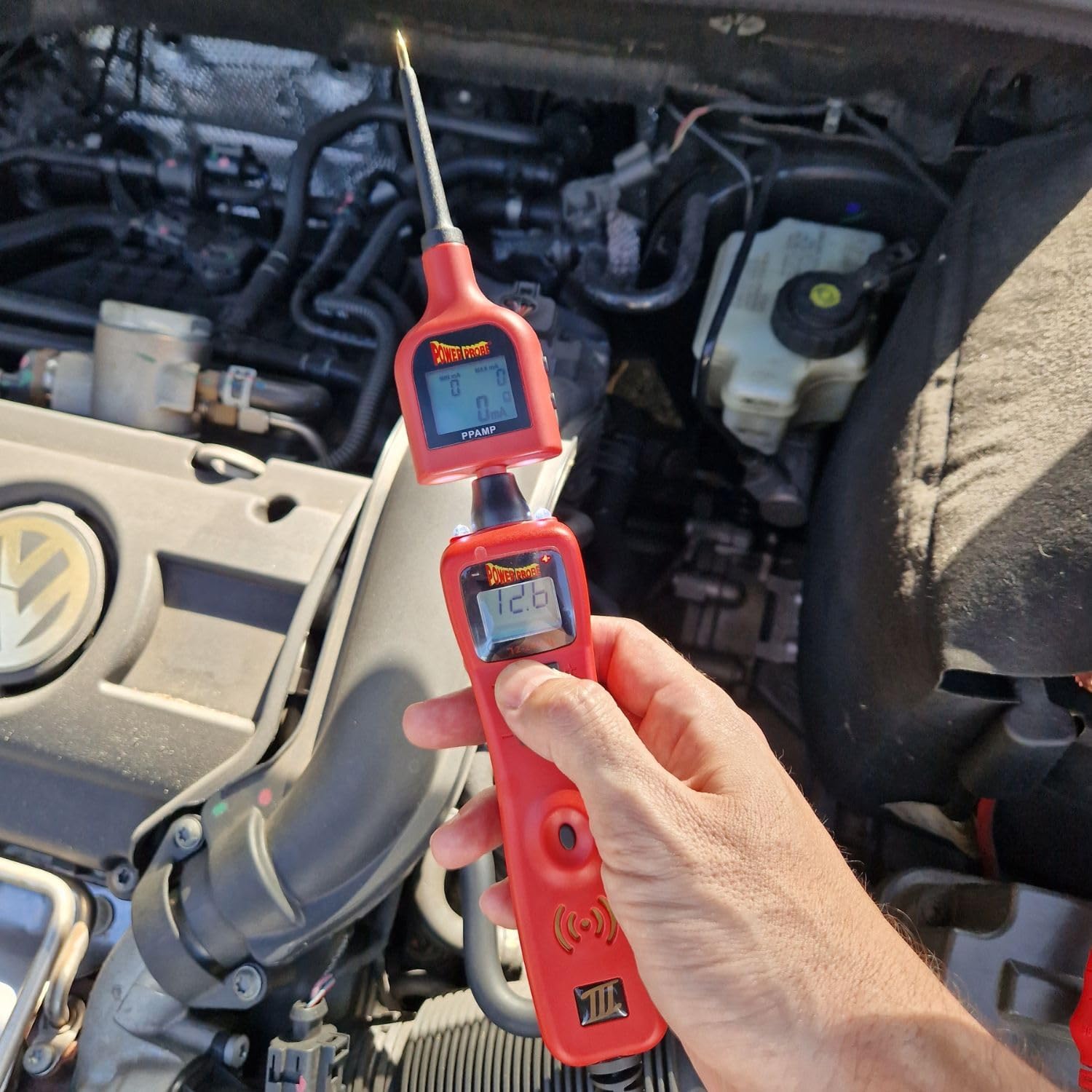

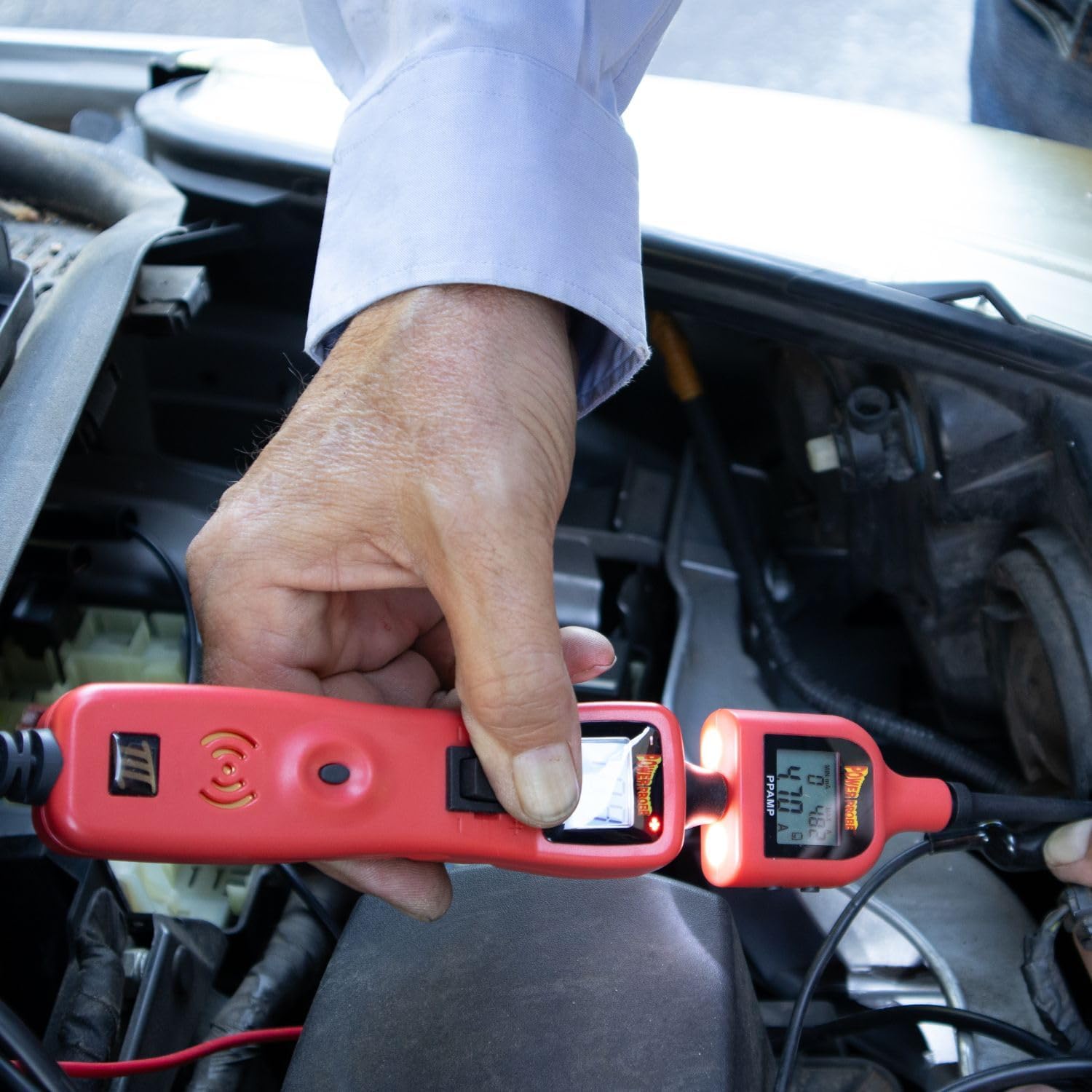

This Power Probe Master Kit includes a Power Probe 4, ECT3000, amp adapter tip, and pulse modulation width tip. The Power Probe 4 applies power or ground for easy checks if the wiring or component is wrong. It also features a feed test and fuel injector tester. The ECT3000 traces short circuits with arrows that direct you to where the trace is exactly. The amp tip allows the Power Probe 4 to read volts and amps while showing minimum and maximum amps. The pulse modulation width tip applies duty cycle from 5% to 100% for circuit fan testing and other pulse modulated components.

Technical specifications

• Min Operating Voltage: 8 VDC
• Max Operating Voltage: 30 VDC
• Max Tip Voltage: 450 Volts
• Probe Tip Resistance to Ground: 130K Ohms
• Computer Safe: 0.1mA fl oating tip
• Voltage Measurement:-100 to 200 VDC / VAC (70 VAC RMS)
• Voltage Resolution: -99.99 to 99.9 V – 0.01V (10mV) 100.0 to 199.9 V – 0.1V (100mV)
• Glitch Capture: >380µS Min Pulse Width
• Power Feed Test: < 30 mA
• Resistance Measurement: 0.1 Ohms to 10K Ohms
• Frequency Measurement: 1Hz to 9999Hz
• Driver Test: 50 Ohm Pull Up on Tip
• Driver On Range: 50mV to 1V
• ECT Signal Detection:2 sec.
• Fuel Injector Mode: LED Flash @ Min 35V @ 100µS Pulse
• Red LED Response: Within 0.5V BATT V and < 10 Ohms
• Green LED Response:< 10 Ohms
• Circuit Breaker: 8 Amp Thermal – Auto Reset
• Breaker Trip Response:
• 8 Amps = No Trip
• 10 Amps = 20 min.
• 15 Amps = 6 sec.
• 25 Amps = 2 sec.
• Short Circuit = 0.3 sec.
• Operating Temperature: -20°C (-4°F) to 50°C (122°F)
• Storage Temperature: -40°C (-40°F) to 65°C (149°F)

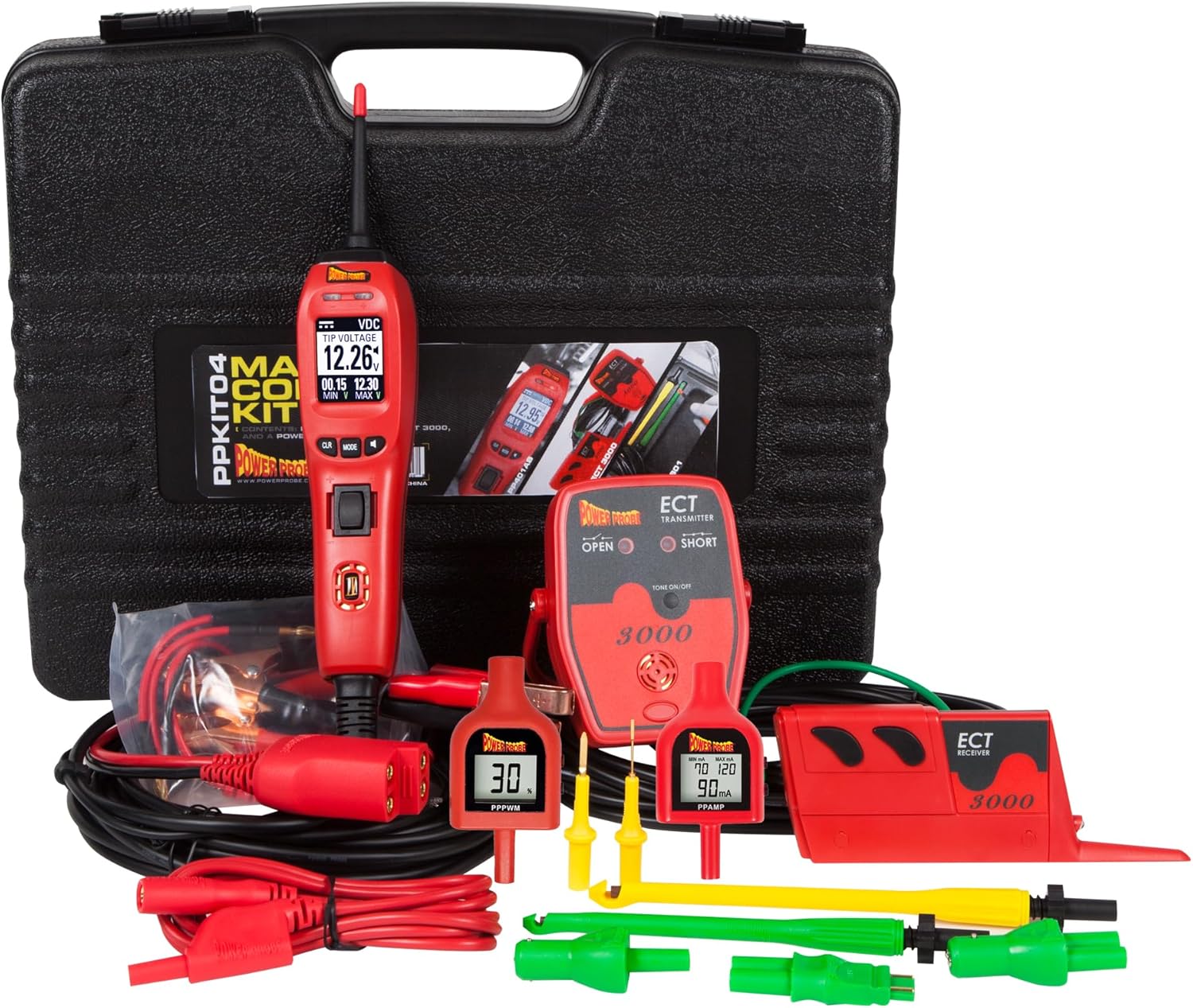

What’s included

• Power Probe® 4
• ECT3000 Transmitter
• ECT3000 Receiver
• Power Probe® Tip
• 3 Light Bulb Adapters
• Universal Adapter
• Alligator Clip Adapter
• Blade Probe Adapter
• Back Probe Adapter
• Small Piercing Probe
• Large Piering Probe
• Battery Clipset
• Battery Clipset for the PP4
• 3 Leads
• Self-resetting Circuit Breaker
• AAA Batteries
• Power Probe AMP Adapter Tip
• Power Probe PWM Adapter Tip

User Manual
View user manual (opens in a new tab)
Shipping & returns

Shipping policy

Returns policy

View full details

Advanced diagnostics meet precision circuit tracing.

PP4 advanced diagnostics

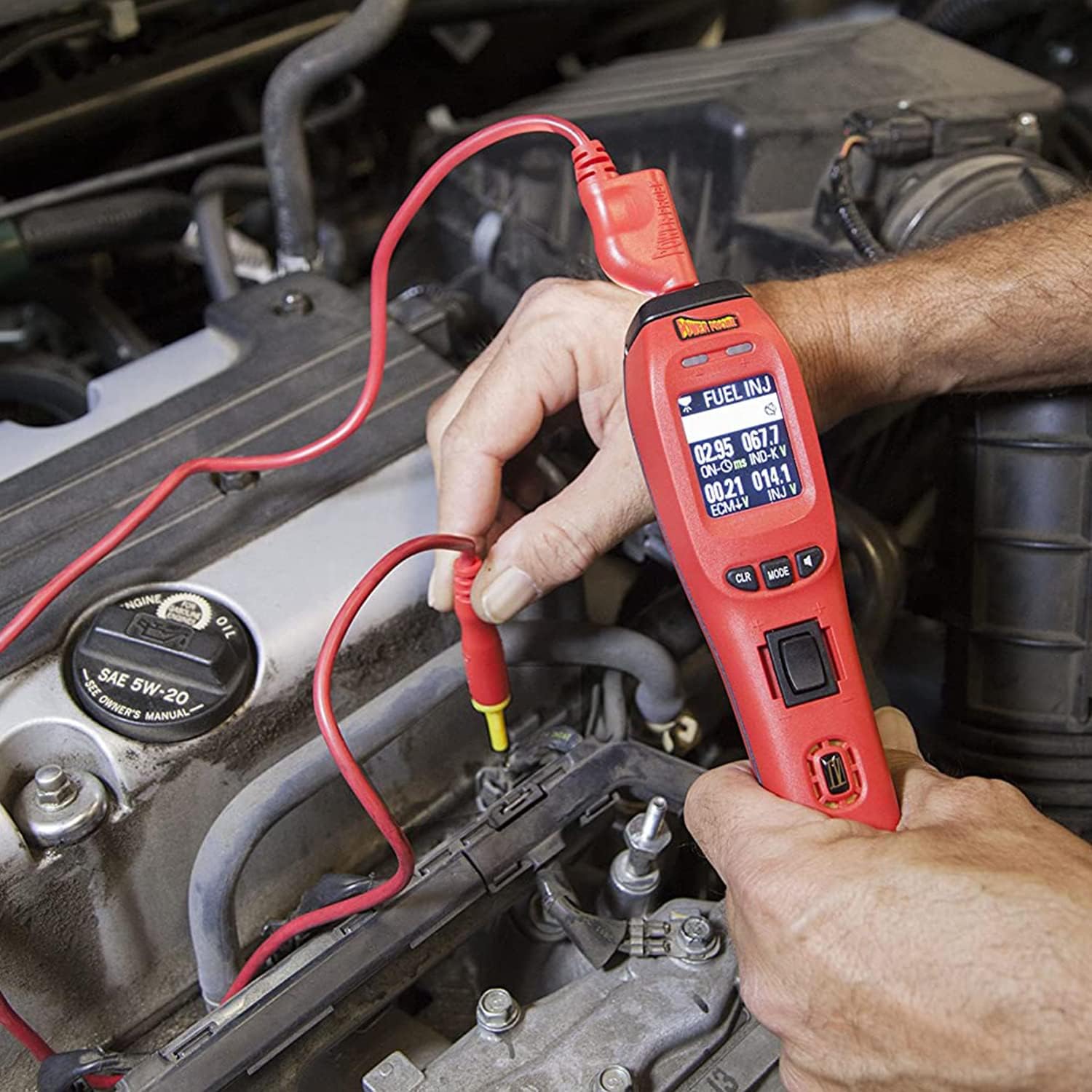

Go beyond basic voltage testing with Power Feed, resistance, frequency, driver, fuel-injector, and signal-detection capabilities while still applying power or ground for functional component testing.

ECT3000 circuit tracing

Follow shorts and open circuits through vehicle wiring with adjustable receiver sensitivity and directional short-to-ground indication. The system is designed to help trace faults without unnecessarily exposing the harness.

Integrated PPECT fault detection

Use the PP4 and ECT3000 together to pinpoint breaks and open circuits more precisely. The PP4’s PPECT mode is specifically designed to detect the ECT signal, giving technicians another way to verify and narrow down the fault location.
