POWER PROBE · PP3CS

Circuit Tester

Circuit Tester

Test circuits, power components, and find faults faster.

$211.95
$211.95
Sale Sold out
Shipping calculated at checkout.
  • Check voltage, polarity, and continuity directly at the circuit with LCD, LED, and optional audio feedback.
  • Apply power or ground at the probe tip to activate and test electrical components without unnecessary disassembly.
  • Diagnose shorts, bad grounds, and intermittent signals with multiple testing modes built into one handheld tool.

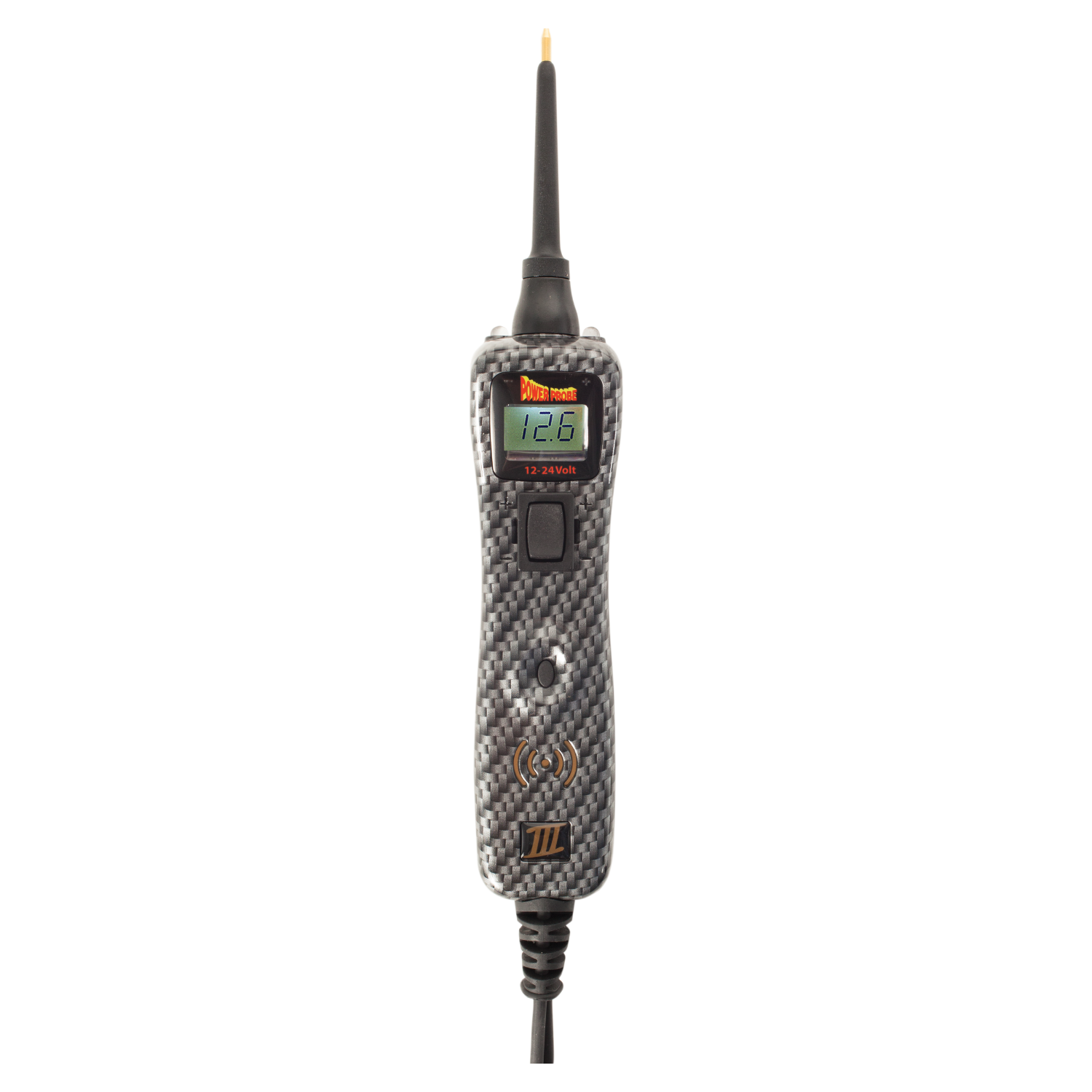

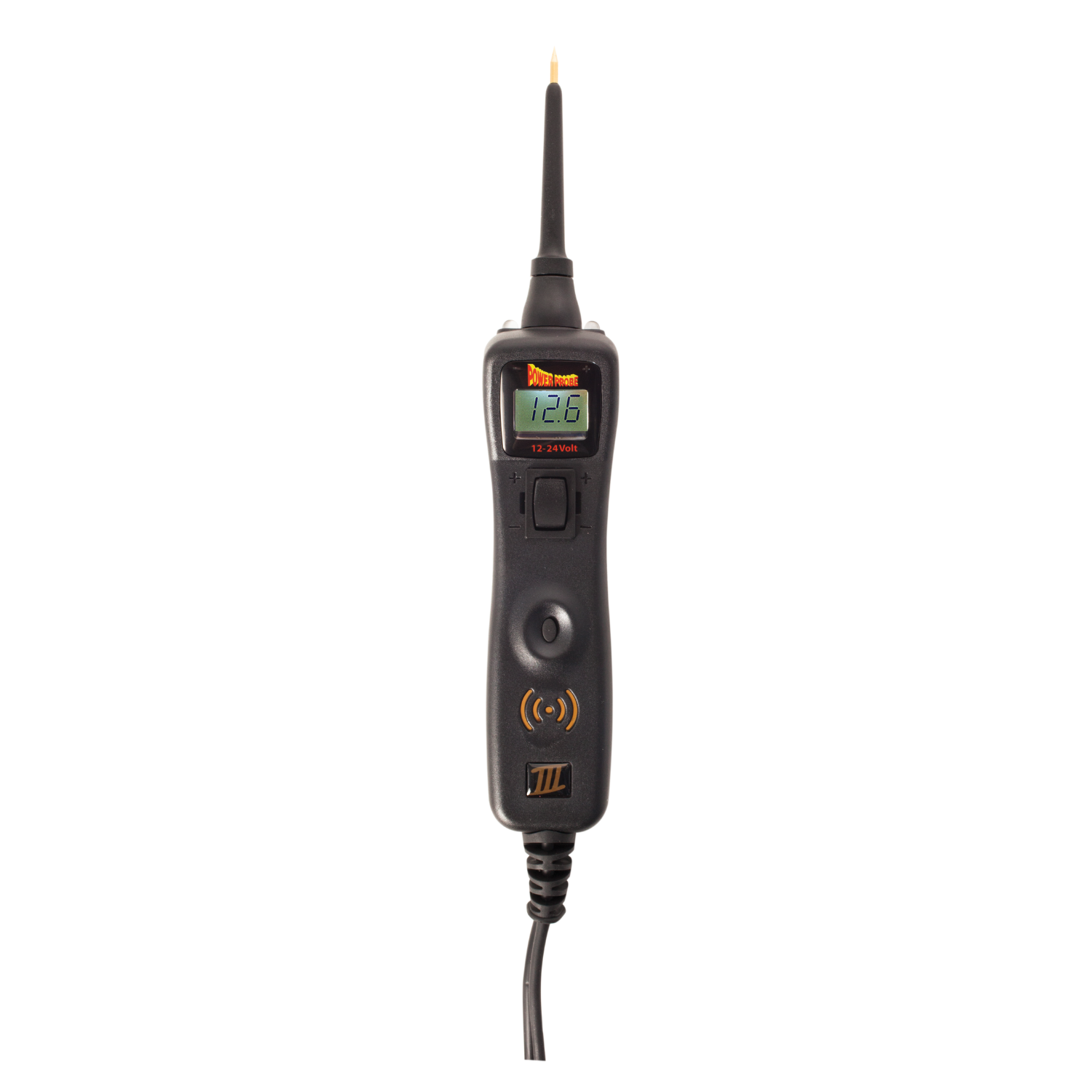

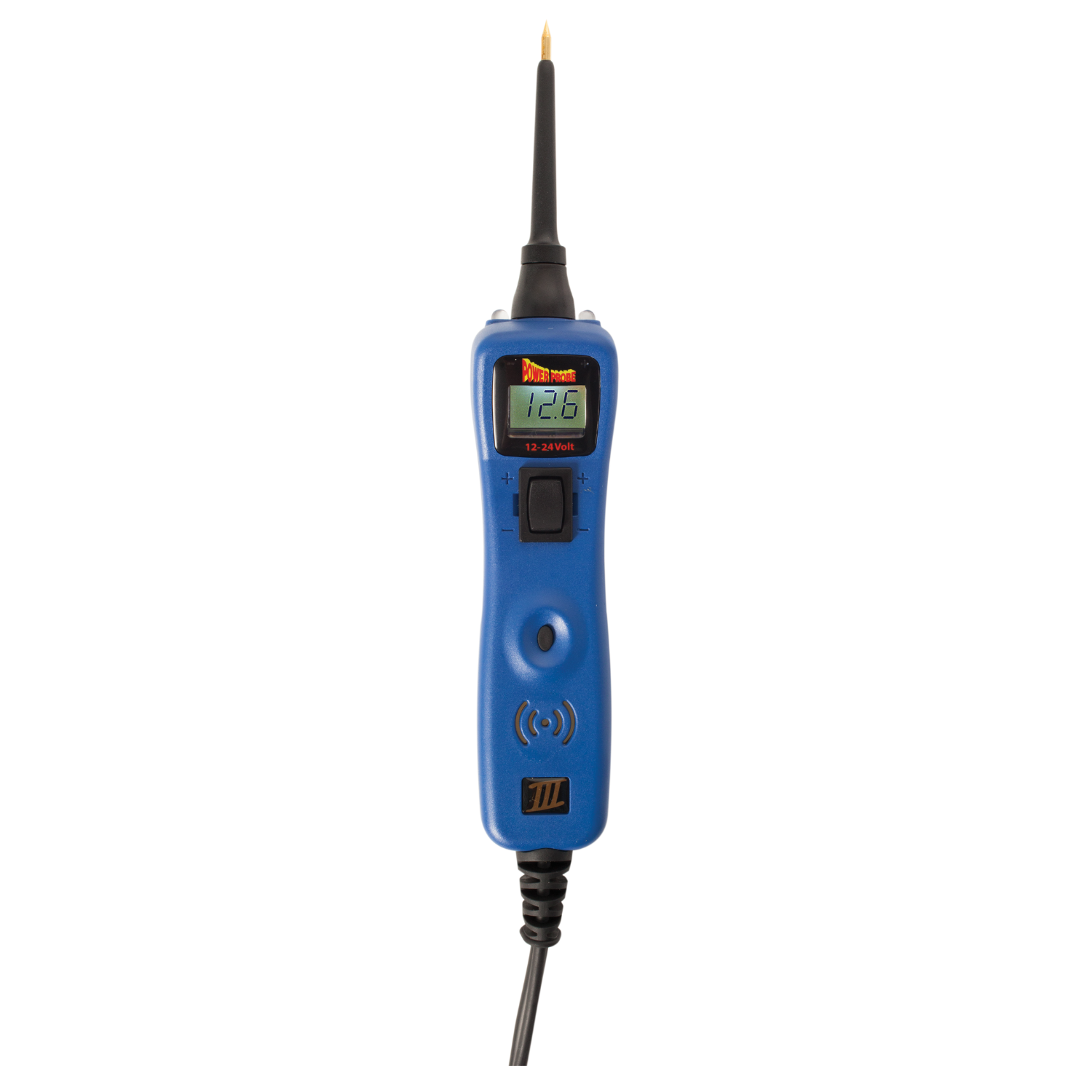

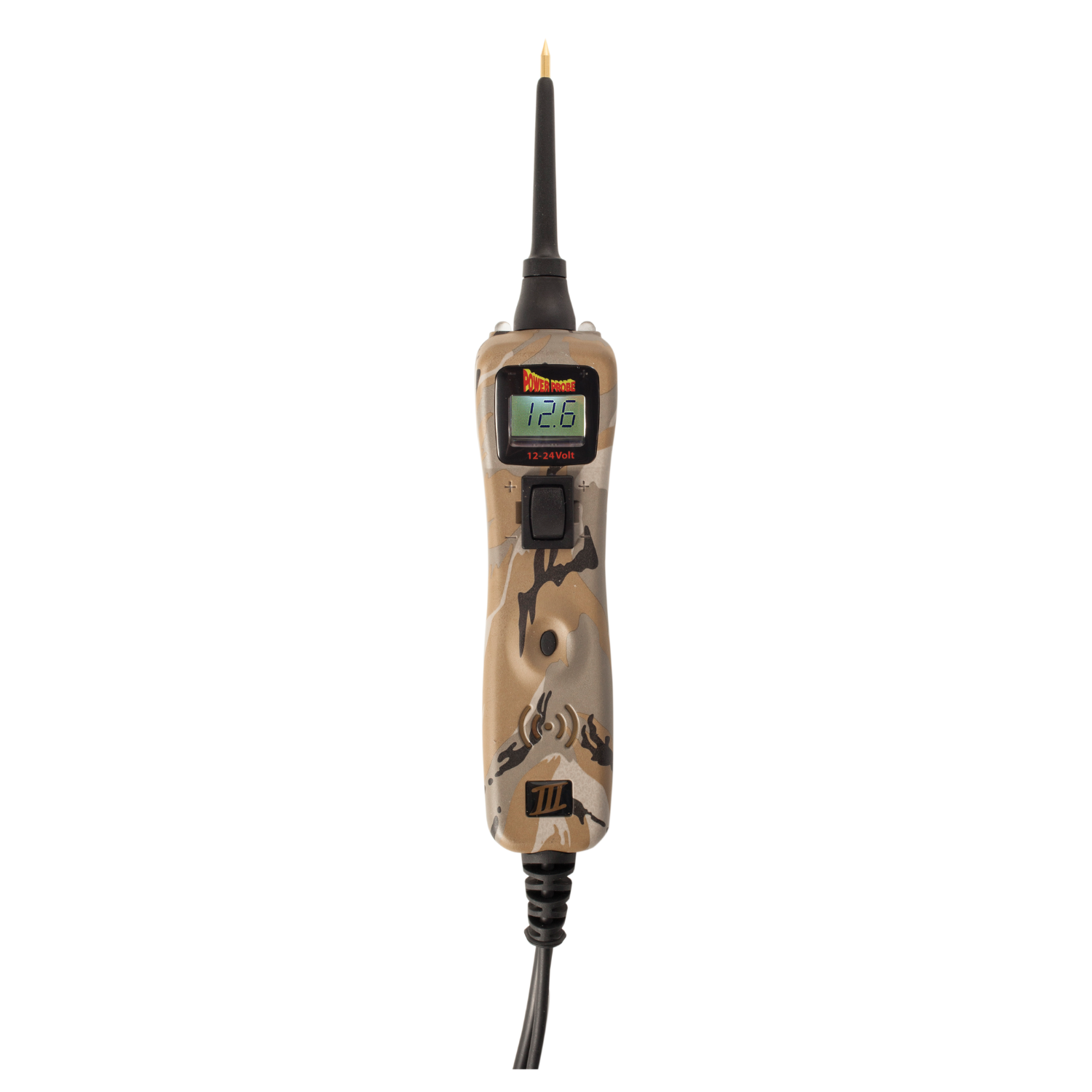

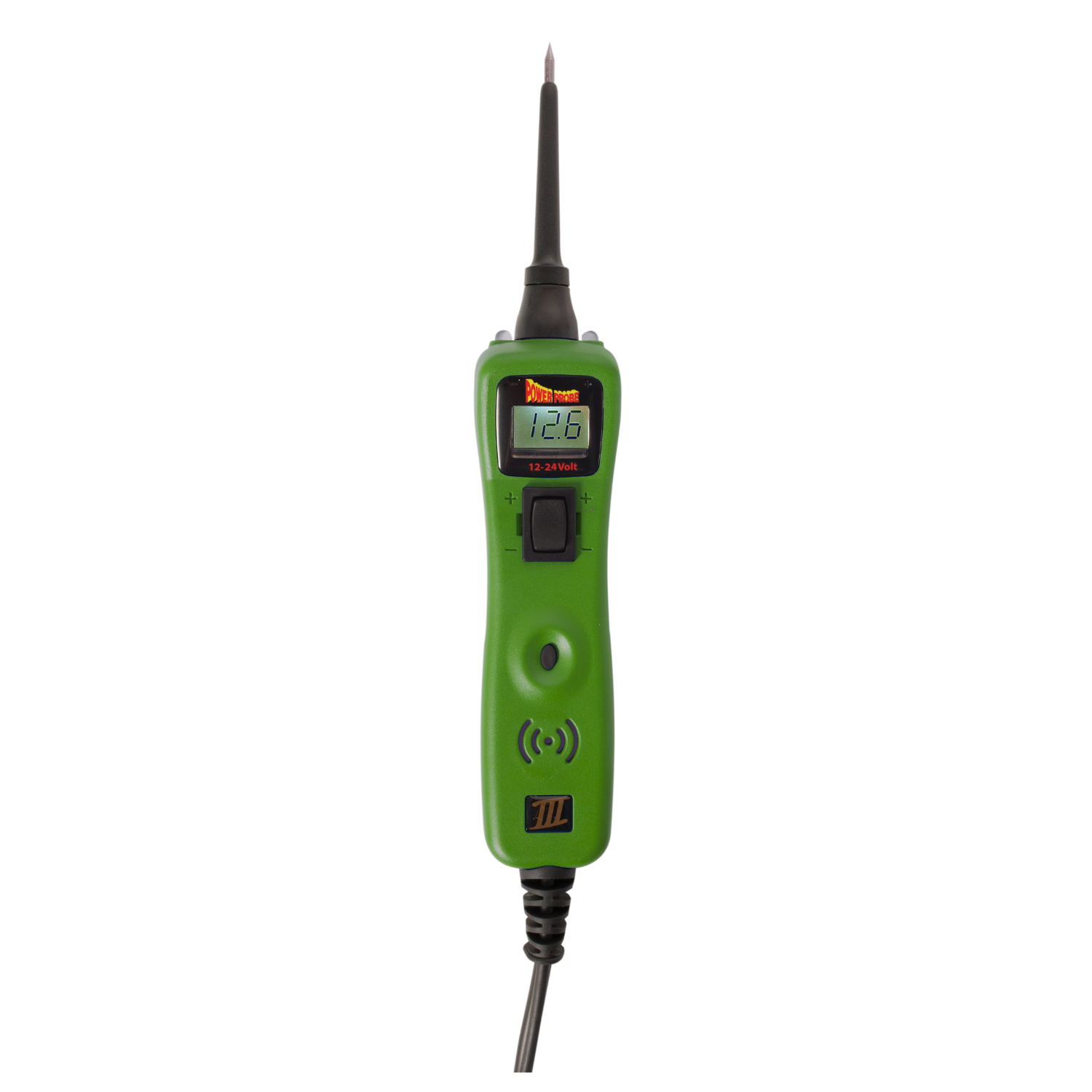

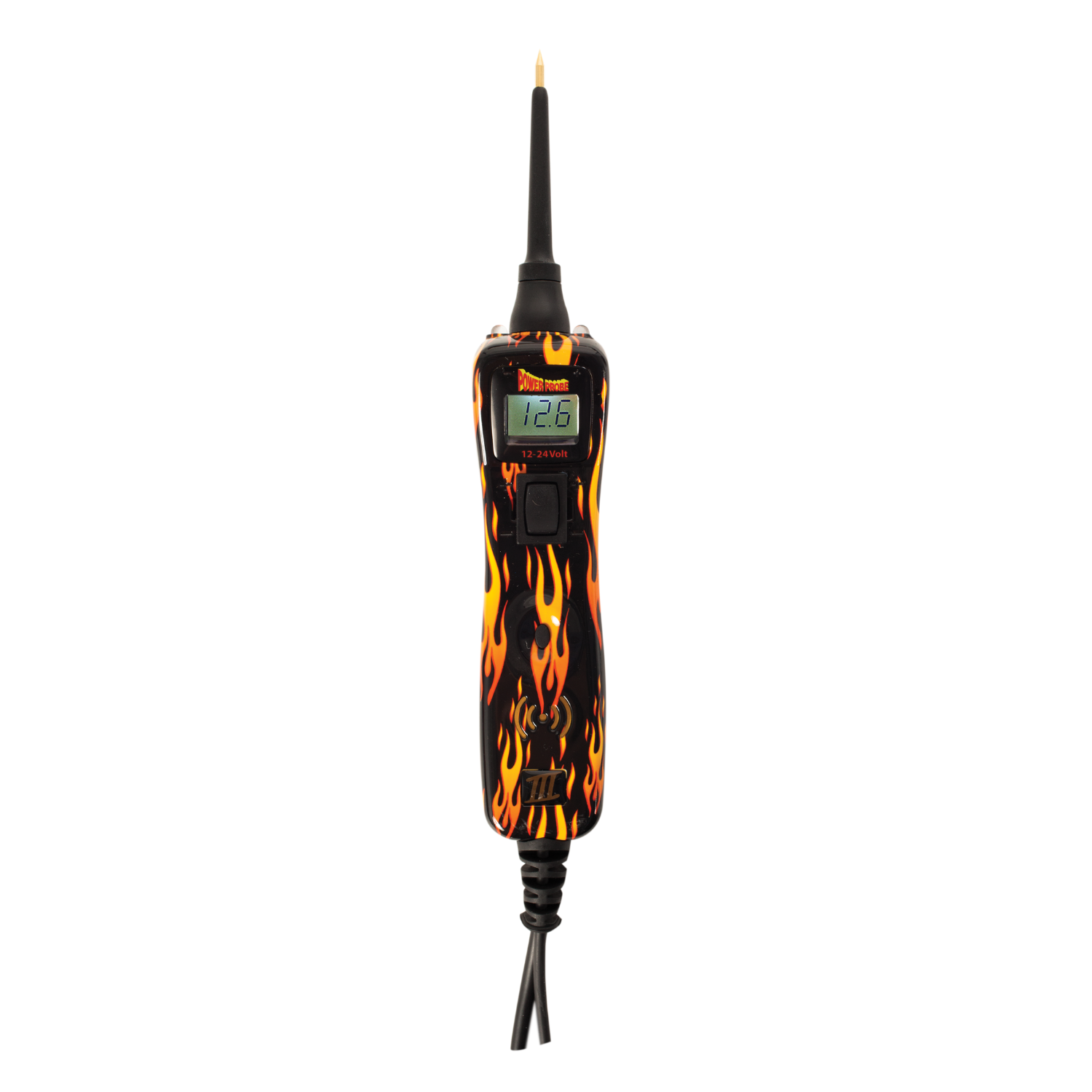

Color
Product description
The original Power Probe 3 uses a 20 cable which attaches to the vehicle’s battery, allowing the user to perform an electrical test anywhere in, or around the vehicle. The PP3 is a Voltmeter and Continuity Tester, with Audible & Visual indicators along with two LED headlights to light up your work area. This circuit tester also supplies Battery Voltage or Ground to activate components. This powerful time-saver tool is perfect for every level of technician
Technical specifications

• DC 0 to +70V +1 Digit
• P-P 0 to +70V
The frequency response of tone pass through
• 10Hz to greater than 10 kHz
PP Display
• 15 Hz Square Wave
• 35 Hz Sine Wave
Power Probe® Mode – Continuity to ground
• First level – Display is enabled less than 20 K Ω
• The second level – Green LED is enabled less than 600 Ω
– & +Peak Detector Response
• Single event capture less than 200ms pulse width
• Repetitive events less than 1ms pulse width
Peak to Peak Mode
• 0 to + 70 + 1 Digit
• 4Hz to over 500kHz Square Wave input
• 4Hz to over 250kHz Sine Wave input
• The threshold for PPAC/Audible passthrough
• Circuit Breaker 8 amp thermal response – Manual reset
• AC voltage leakage test (alternator)

What’s included

• Power Probe® 3 with standard 20 ft (6 m) Power Cable
• 3 in (8 cm) Probe Tip
• Battery Clip Set
• Instruction Manual

User Manual
View user manual (opens in a new tab)
Shipping & returns

Shipping policy

Returns policy

View full details

One probe. Multiple ways to diagnose electrical problems.

Voltage, polarity & continuity

See circuit voltage on the LCD while red and green LEDs quickly identify polarity, and check continuity in wires and components.

Power & ground at the tip

Use the power switch to apply battery positive or ground through the probe tip to activate components and verify operation. The manual specifically shows applications including lights, motors, fuel pumps, solenoids, relays, and other electrical components.

Five diagnostic modes

Go beyond basic voltage testing with five modes for standard circuit testing, positive and negative peak capture, peak-to-peak measurement, and adjustable peak-detection thresholds.
