POWER PROBE · PP319FTC

Circuit Tester

Circuit Tester

Test circuits, power components, and find faults with added reach and versatility.

$274.95
$274.95
Sale Sold out
Shipping calculated at checkout.
  • Check voltage, polarity, and continuity directly at the circuit with LCD, LED, and optional audio feedback.
  • Apply power or ground at the probe tip to activate and test electrical components without unnecessary disassembly.
  • Work farther from the battery and stay organized with the PP319’s additional accessories, including extended reach and a protective carrying case.
Color
Product description

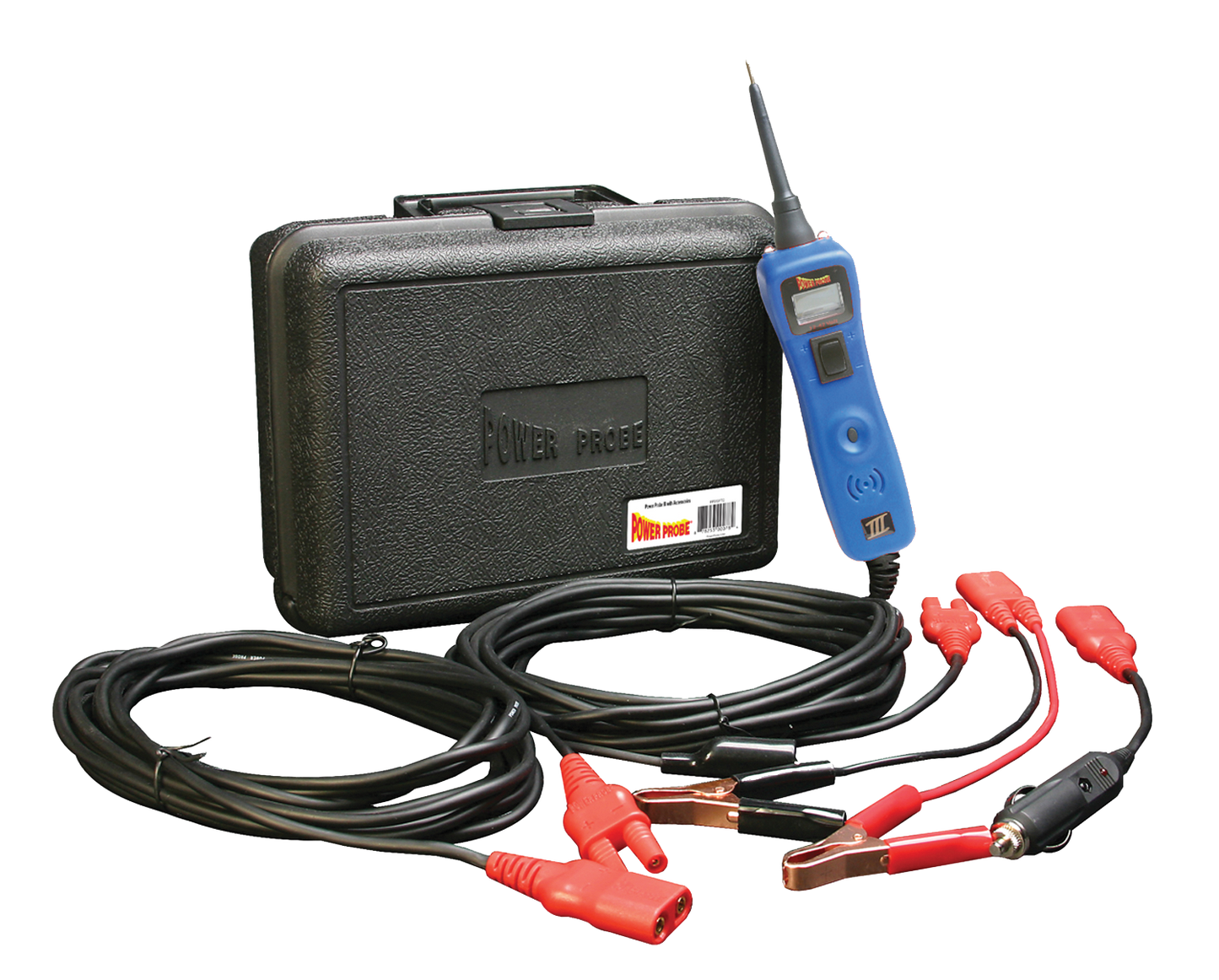

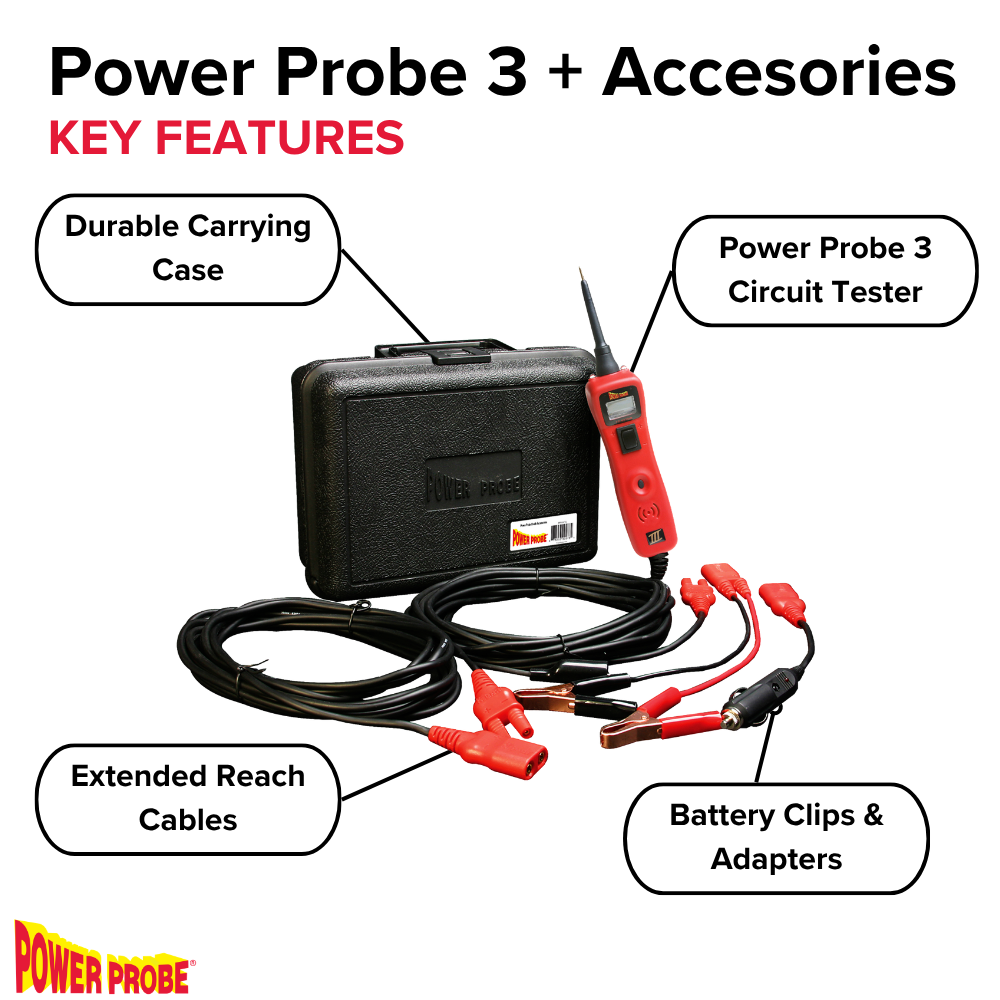

The Power Probe® PP319 combines the diagnostic capabilities of the Power Probe 3 with additional accessories for greater reach and versatility. Operating from 12–24 volt sources, it functions as a digital voltmeter with the ability to apply power and ground directly through the probe. Using the Auxiliary Ground cable, users can simultaneously supply battery voltage and ground to test components, as well as check continuity using the probe tip and auxiliary ground lead. The PP319 kit also includes a 20 ft. power cable extension, cigarette lighter adapter, and protective carrying case, making it easier to diagnose electrical systems throughout and around the vehicle.

Technical specifications

• DC 0 to +70V +1 Digit
• P-P 0 to +70V
The frequency response of tone pass through
• 10Hz to greater than 10 kHz
PP Display
• 15 Hz Square Wave
• 35 Hz Sine Wave
Power Probe® Mode – Continuity to ground
• First level – Display is enabled less than 20 K Ω
• The second level – Green LED is enabled less than 600 Ω
– & +Peak Detector Response
• Single event capture less than 200ms pulse width
• Repetitive events less than 1ms pulse width
Peak to Peak Mode
• 0 to + 70 + 1 Digit
• 4Hz to over 500kHz Square Wave input
• 4Hz to over 250kHz Sine Wave input
• The threshold for PPAC/Audible passthrough
• Circuit Breaker 8 amp thermal response – Manual reset
• AC voltage leakage test (alternator)

What’s included

• Power Probe® 3 with standard 20 ft (6 m) Power Cable
• 3 in (8 cm) Probe Tip
• Battery Clip Set
• Cigarette Lighter Adapter
• 20 ft (6 m) Power Cable Extension
• Instruction Manual

User Manual
View user manual (opens in a new tab)
Shipping & returns

Shipping policy

Returns policy

View full details

One probe. Multiple ways to diagnose electrical problems.

Voltage, polarity & continuity

See circuit voltage on the LCD while red and green LEDs quickly identify polarity, and check continuity in wires and components.

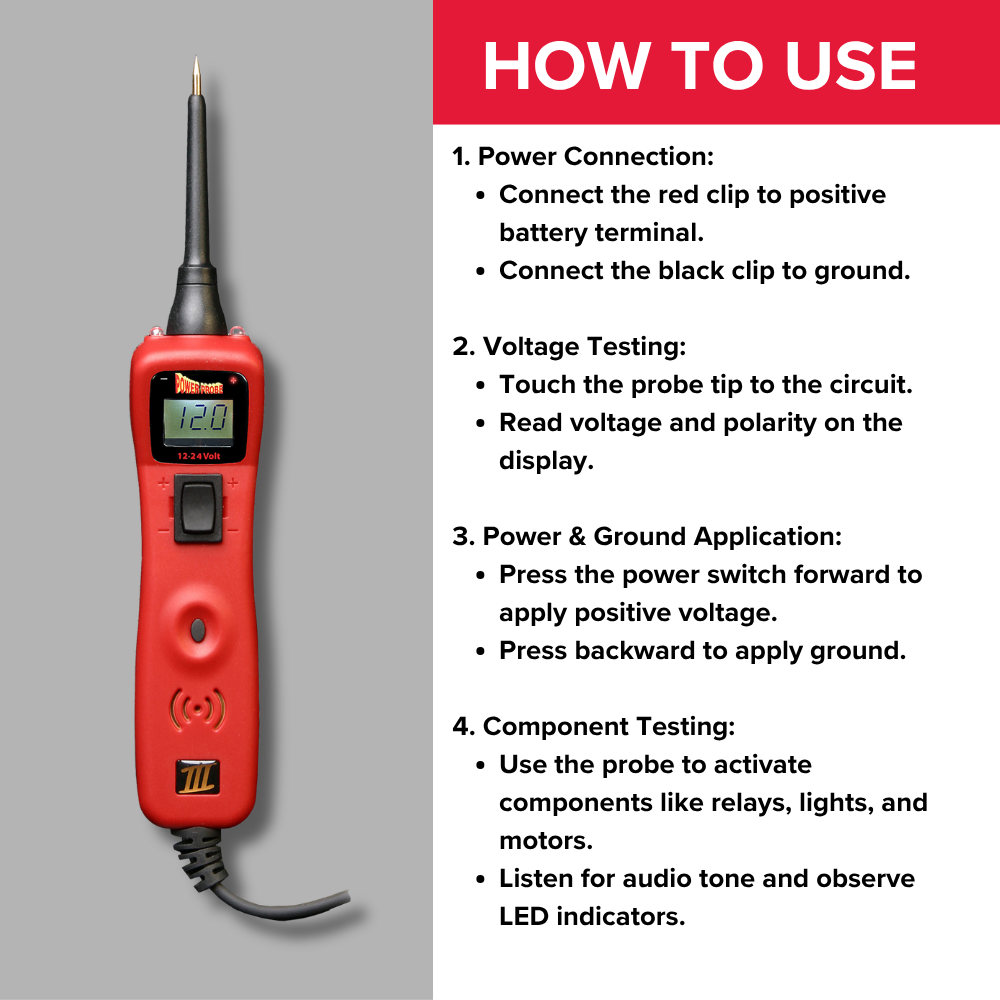

Power & ground at the tip

Use the power switch to apply battery positive or ground through the probe tip to activate components and verify operation. The manual specifically shows applications including lights, motors, fuel pumps, solenoids, relays, and other electrical components.

Five diagnostic modes

Go beyond basic voltage testing with five modes for standard circuit testing, positive and negative peak capture, peak-to-peak measurement, and adjustable peak-detection thresholds.
