POWER PROBE · PPDMM

Digital Multimeter

Digital Multimeter

Professional electrical measurement from voltage to temperature.

$225.95
$225.95
Sale Sold out
Shipping calculated at checkout.
  • Measure AC/DC voltage and current, resistance, capacitance, frequency, continuity, diodes, and temperature from one professional handheld meter.
  • Handle demanding electrical diagnostics with measurements up to 600V, 10A current, 60MΩ resistance, and 60mF capacitance.
  • Capture and compare readings more easily with autoranging, MIN/MAX, relative measurement, data hold, and a backlit 6000-count display.
Product description

The Hybrid Safe CAT-IV 600V Automotive Digital Multimeter DMM by Power Probe® is versatile, accurate and rugged with its Large LCD Screen and Bright Backlight. Measures AC/DC Voltage, Current, Resistance, Frequency, Temperature and Capacitance, Data Hold, Min/Max Capture, Relative Measurement, and Diode/Continuity Tester. Perfect for Automotive use with Loud Indication Tones, 15 min auto shut-off function, and rugged rubberized housing.

Technical specifications

• Display: 6000 counts
• Auto power off
• Backlight
• Hold
• Auto-ranging
• MIN/MAX/REL
• Dimensions : 62x240x41mm
• Weight: 430g
• Power Supply: 3 x 1,5V AAA
• Safety category: CAT IV 600V, CAT III 1000V
• Voltage: 600V AC/DC
• Current: 10A AC/DC
• Resistance: 60MΩ
• Capacitance: 60mF
• Frecuency: 10kHz
• Diodes: 2,7V
• Continuity: <50Ω
• Temperature: -20°C ~ 1000°C/-4°F ~ 1832°F

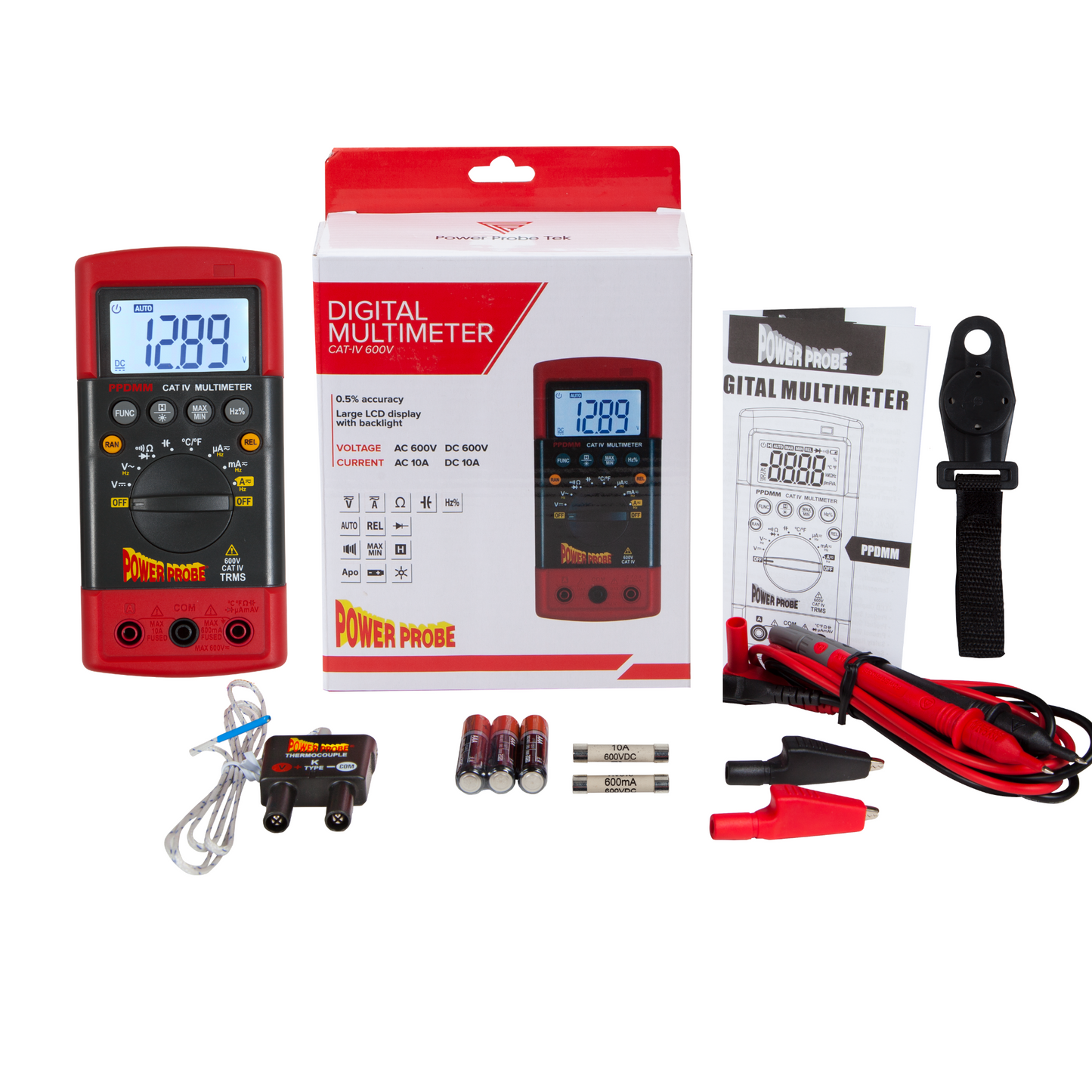

What’s included

• 2 x 1.5m (5 ) Test Leads (PPTK0001)
• 2 x alligator clips
• 1 x K-Type Thermocouple (PPTK0036)
• 1 x Magnetic Hanging Strap
• 3 x AAA Batteries
• 2 x Spare Fuses

User Manual
View user manual (opens in a new tab)
Shipping & returns

Shipping policy

Returns policy

View full details

One meter for deeper electrical measurement.

Full diagnostic measurement

Measure AC/DC voltage and current along with resistance, capacitance, frequency, continuity, diodes, and temperature for a wide range of electrical troubleshooting tasks.

Wide measurement range

Test up to 600V AC/DC and 10A current, with resistance measurement up to 60MΩ, capacitance up to 60mF, and temperature from -20°C to 1000°C (-4°F to 1832°F).

Smarter reading control

Use autoranging, manual range selection, MIN/MAX capture, relative mode, data hold, frequency/duty-cycle switching, and a backlit display to make complex measurements easier to interpret.
