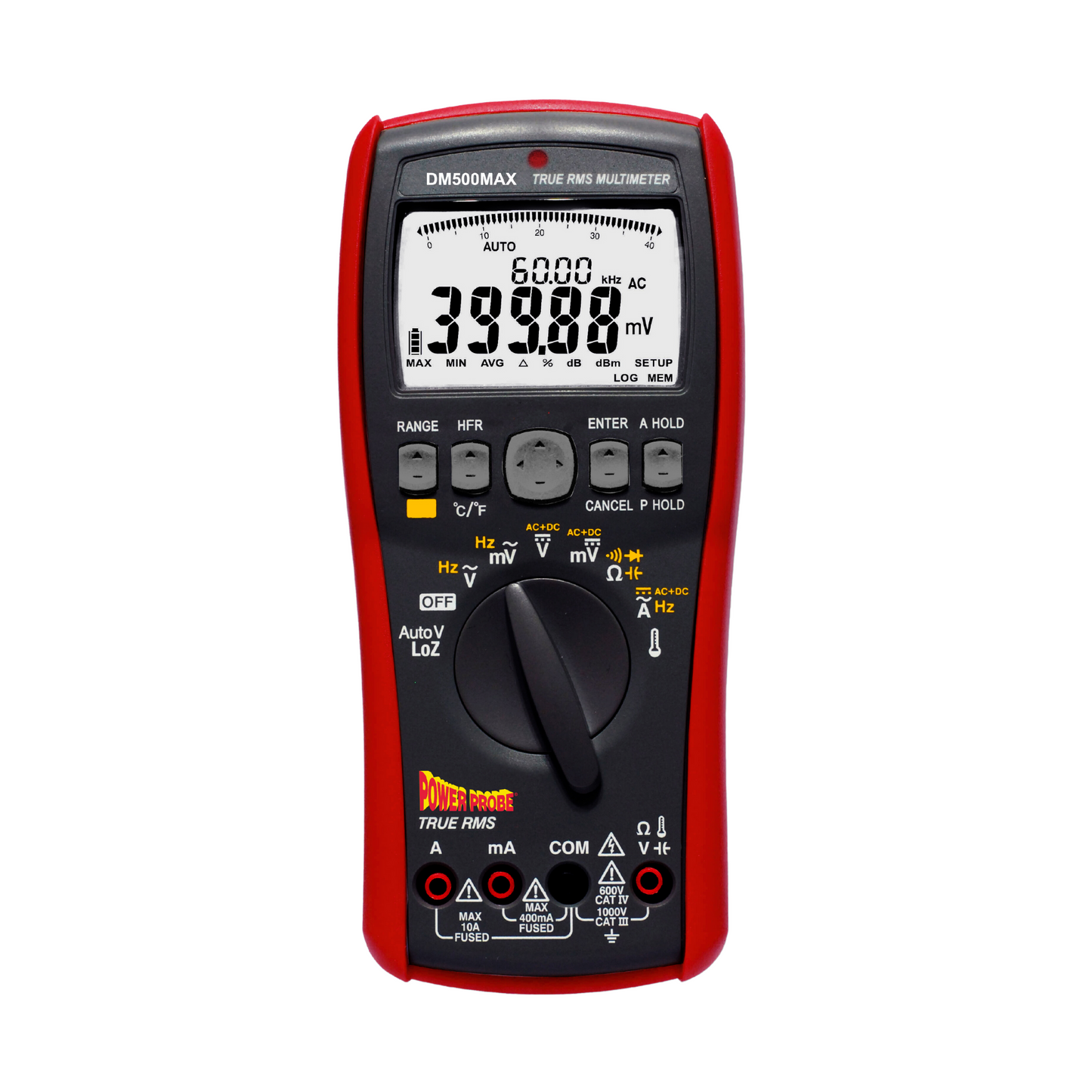

POWER PROBE · PPDM500MAX

Digital Multimeter

Digital Multimeter

True-RMS measurement with advanced diagnostics and data logging.

$525.95
$525.95
Sale Sold out
Shipping calculated at checkout.
  • Measure demanding AC/DC electrical systems with True-RMS voltage and current measurement up to 1000V and 10A, plus resistance, capacitance, frequency, temperature, diode, and continuity testing.
  • Capture difficult and intermittent signals with Peak Hold, MIN/MAX/AVG, AC+DC measurement, LoZ, and High Frequency Rejection modes.
  • Record and analyze diagnostic data over time with onboard memory, a built-in data logger, and infrared communication for transferring readings to a PC.
Product description

The DM500MAX is designed for harsh environments with a watertight gasket as the seams rotary switch, an input terminal, and battery cover to keep out dust, dirt, and splashing. They can also take shocks and drops, work anywhere from indoor to outdoor, and special designed LoZ (Low Impedance) feature to prevent false reading caused by ghost voltages.

Technical specifications

• 40,000 count extra-large digital display
• Auto backlit, dual display
• Auto AC/DC voltage detect with low impedance
• AC+DC voltage measurements
• High Frequency rejection mode
• Auto-save mode to automatically save new reading
• Resistance capacitance & Diode testing
• Temperature
• Datalogging
• Safety rating: CATIV600V

What’s included

• Test Leads
• Alligator Clips
• Temp. Probe
• USB Cable
• Alkaline Battery
• Protective Holster
• Instruction Manual
• Magnetic Hanging Kit

User Manual
View user manual (opens in a new tab)
Shipping & returns

Shipping policy

Returns policy

View full details

Measure deeper. Capture more. Log the results.

Advanced True-RMS diagnostics

Measure complex AC and DC signals with True-RMS accuracy and specialized modes including AC+DC, LoZ, and High Frequency Rejection for more demanding electrical troubleshooting.

Capture intermittent events

Use 10 μs Peak Hold, Auto Hold, and MIN/MAX/AVG recording to catch brief spikes, dips, and changing conditions that can be difficult to see with a standard meter.

Built-in data logging

Store up to 1,000 individual readings or log up to 40,000 data points over time, with adjustable recording intervals from 1 to 600 seconds. Infrared communication and WinDMM software can also transfer real-time and stored readings to a computer for further analysis.
