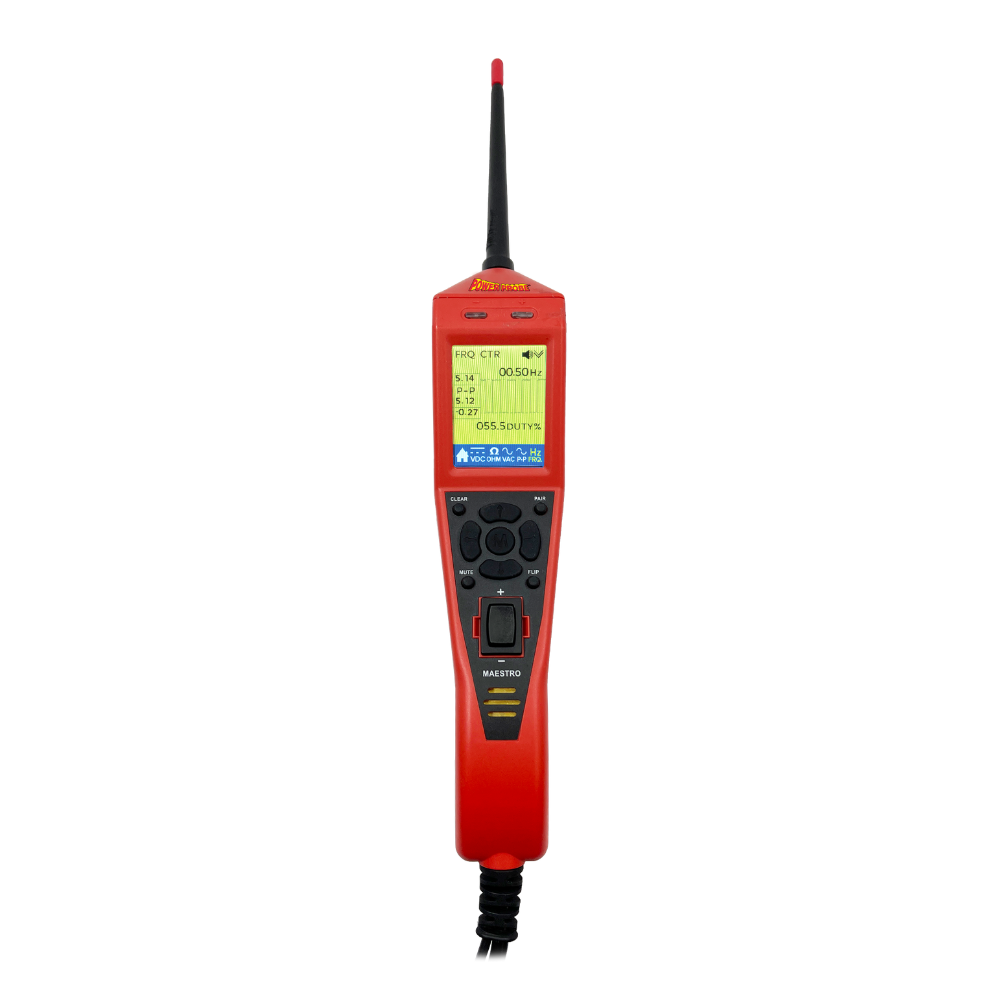

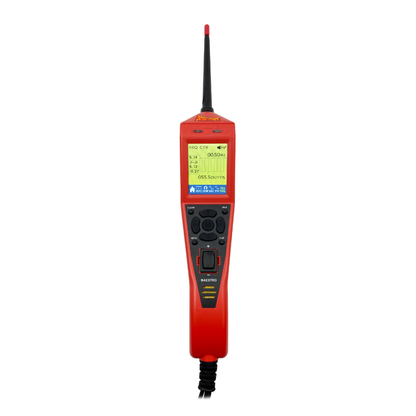

POWER PROBE · PPTM01AS

Circuit Tester

Circuit Tester

Advanced circuit diagnostics with guidance, live tracing, and connected data.

$489.95
$489.95
Sale Sold out
Shipping calculated at checkout.
  • Test, power, and diagnose electrical circuits with voltage, resistance, AC, frequency, Power Feed, and fuel-injector testing capabilities.
  • Work through common diagnostic procedures with built-in guidance, including battery, charging, fuse, component, and wiring tests.
  • Capture, review, and share diagnostic data using Trace Mode and the connected Power Probe Pro Series app.
Product description

The Power Probe® Maestro has the ability to communicate with the Power Probe® App, making the diagnostic potential of this tool unlimited. Working in conjunction with the app, the Maestro allows the user to data-log either screenshots or record visual traces of their customer’s electrical issues. The Maestro will have the ability to display an oscilloscope type measurement. In addition to the multimeter functions, guided diagnostics, testing of fuel-injectors, and the ability to apply battery-supplied power and ground, the Maestro and Power Probe® App will be compatible to blend with a majority of diagnostic scan tools out in the market today.

Technical specifications

• Min Operating Voltage: 9 VDC
• Max Operating Voltage: 30 VDC
• Max Tip Voltage: 450 Volts
• Probe Tip Resistance to Ground: 350 K Ohms
• Computer Safe: 0.1mA fl oating tip
• Voltage Measurement: -100 to 200 VDC/VAC
• Voltage Resolution: -99.99 to 99.9 V - 0.01V (10mV)
• GIitch Capture >380μS Min Pulse Width
• Power Feed Test < 30 mA
• Resistance Measurement: 0.01 Ohms to 10K Ohms
• Frequency Measurement: 1Hz to 9999Hz
• Fuel Injector Mode: LED Flash @ Min 35V @ 100μS Pulse
• Red LED Response: Within 0.5V BATT V in Voltmeter Mode and >10 Ohms in Power Feed Test Mode
• Green LED Response: < 10 Ohms in both Power Feed Test Mode and Voltmeter Mode and <.5V in Voltmeter Mode
• Circuit Breaker: 8 Amp Thermal – Auto Reset
• Breaker Trip Response: 8 Amps = No Trip | 10 Amps = 20 min. 15
Amps = 6 sec. | 25 Amps = 2 sec. Short Circuit = 0.3 sec.

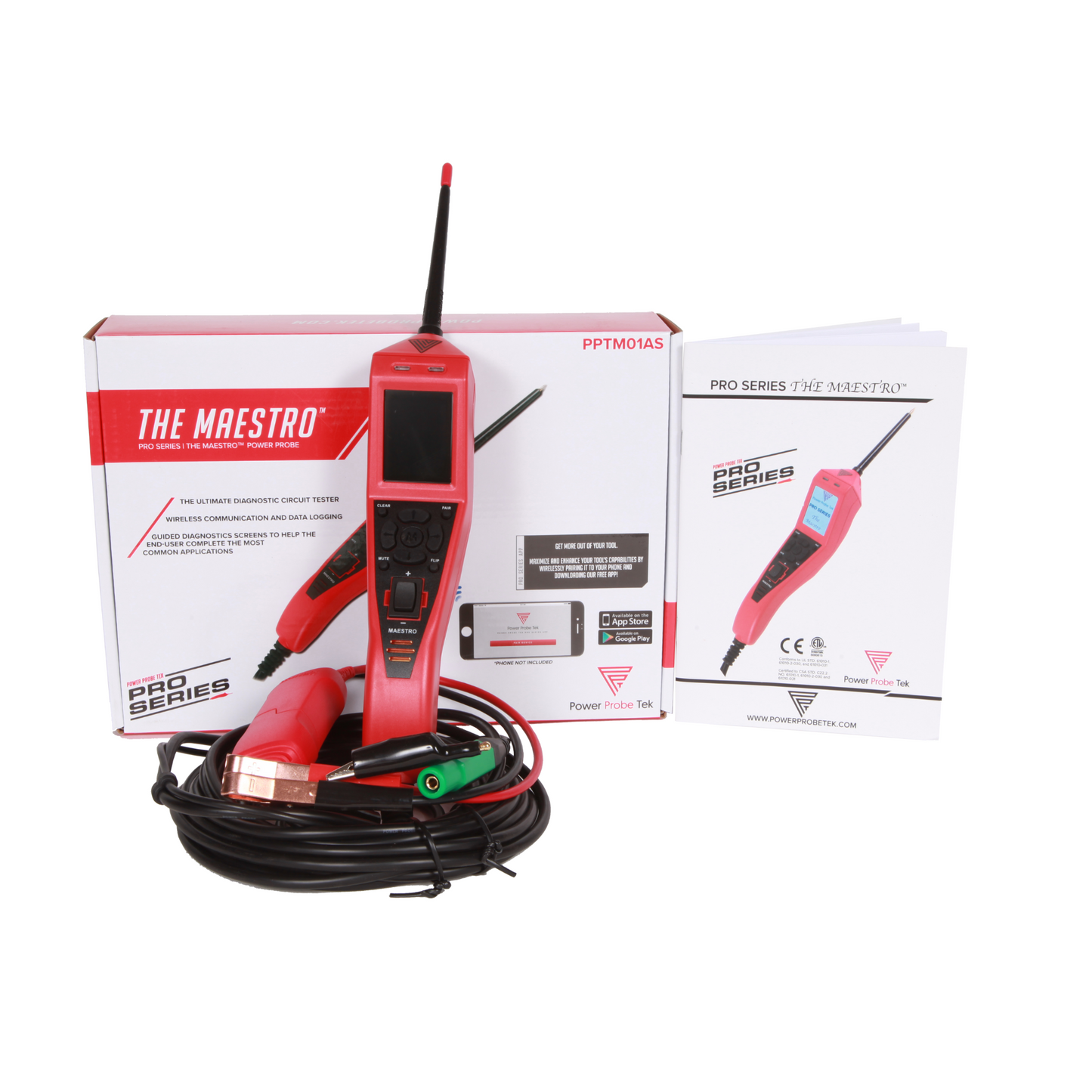

What’s included

• Power Probe® Maestro
• 4 in (10 cm) probe tip
• Battery clipset
• Alligator clip adapter
• Instruction manual

User Manual
View user manual (opens in a new tab)
Shipping & returns

Shipping policy

Returns policy

View full details

See more. Diagnose smarter. Capture what happened.

Guided diagnostics

Follow built-in test procedures for common electrical problems and compare results against expected conditions. Guided Diagnostics walks technicians through battery, charging, fuse, component, and wiring tests and reports results such as OK, LOW, HIGH, or CHECK.

Live Trace Mode

Turn electrical signals into an on-screen trace to spot changes, spikes, and intermittent events that a single voltage reading can miss. Trace functionality is available for DC voltage, AC voltage, frequency, and injector testing, giving technicians a more visual view of circuit behavior.

Connected diagnostic data

Pair the Maestro with the Power Probe Pro Series app to mirror the tool display, log diagnostic data, review previous events, save captures, and share results. The app can buffer collected data so technicians can scroll back to an event, isolate a trace, and save it as an image or playback.
