POWER PROBE · PP3EZREDAS

Circuit Tester

Circuit Tester

Guided circuit diagnostics with added reach and versatility.

$309.95
$309.95
Sale Sold out
Shipping calculated at checkout.
  • Test voltage, polarity, continuity, and components while applying power or ground directly from the probe.
  • Get step-by-step guidance with EZ Learning and EZ Diagnostics for common electrical tests and tool functions.
  • Work farther from the battery and keep your setup organized with an additional 20 ft. extension cable, cigarette-lighter adapter, and hard carrying case.
Product description

The PP3EZ includes all the powerful testing modes and features of the PP3 including 2 new modes - EZ Learning Mode and EZ Diagnostics Mode. Other advanced features include a more user-friendly menu and a 180º fl ip screen. The PP3EZ speeds you through the diagnosing of 12 to 24 volt automotive electrical systems. With this instrument, the automotive technician can determine at a glance the voltage level and the polarity of a circuit using the single probe tip without needing a conventional two pole voltmeter. The PP3EZ switch allows the automotive technician to apply a positive or negative signal from the probe tip to activate and test electrical components without wasting time with jumper leads.

Technical specifications

The frequency response of tone pass through
• 10Hz to 10 kHz
PP Display
• 15 Hz Square Wave
• 35 Hz Sine Wave
Power Probe® Mode – Continuity to ground
• First level – Display is enabled less than 20 K Ω
• The second level – Green LED is enabled less than 600 Ω
– & +Peak Detector Response
• Single event capture less than 200ms pulse width
• Repetitive events less than 1ms pulse width
Peak to Peak Mode
• 0 to + 70 + 1 Digit
• 4Hz to over 500kHz Square Wave input
• 4Hz to over 250kHz Sine Wave input
• Threshold for PPAC/Audible passthrough
• Circuit Breaker 8 amp thermal response – Manual reset
OverVolt Warning (>70V)
Over Load Warning(>34Vdc)

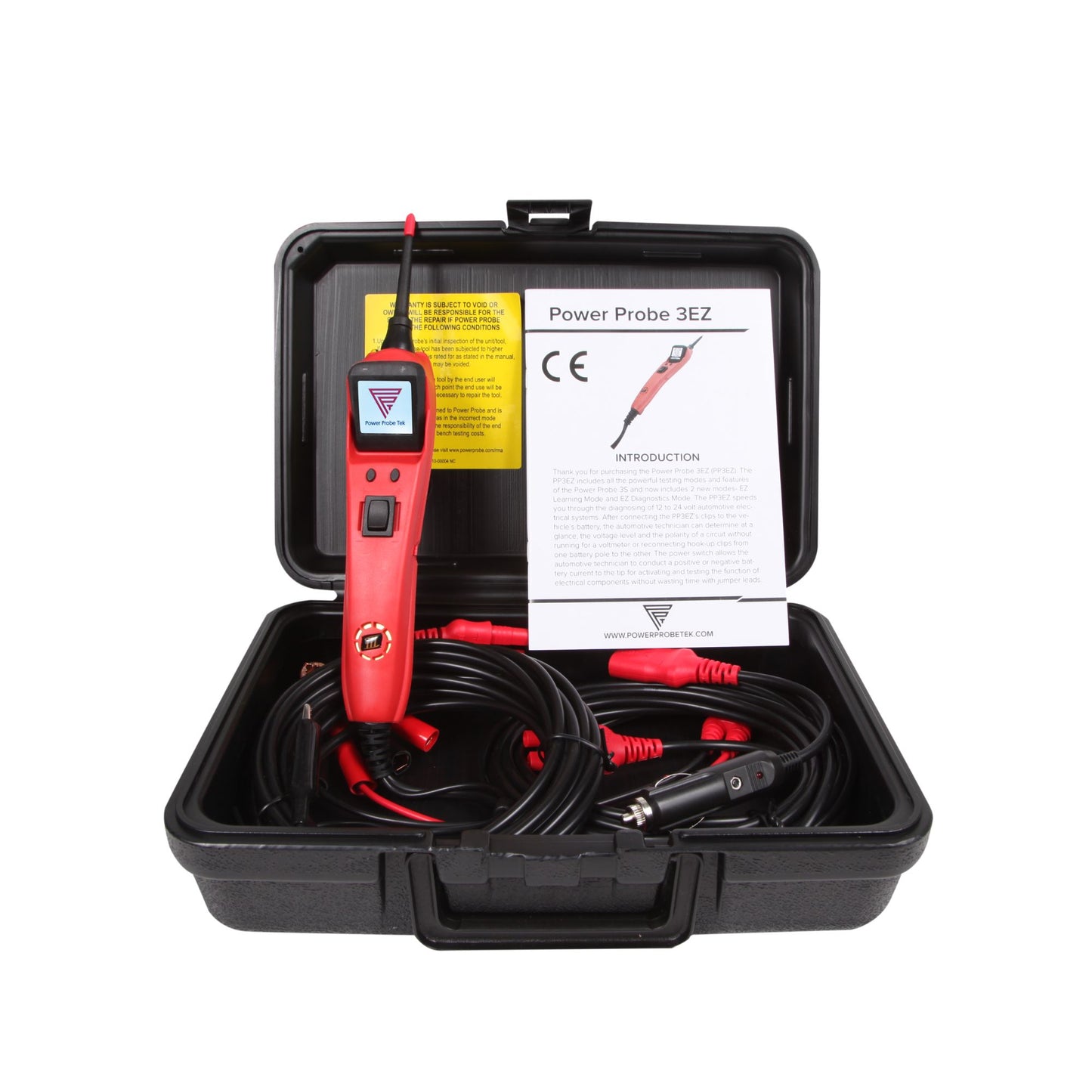

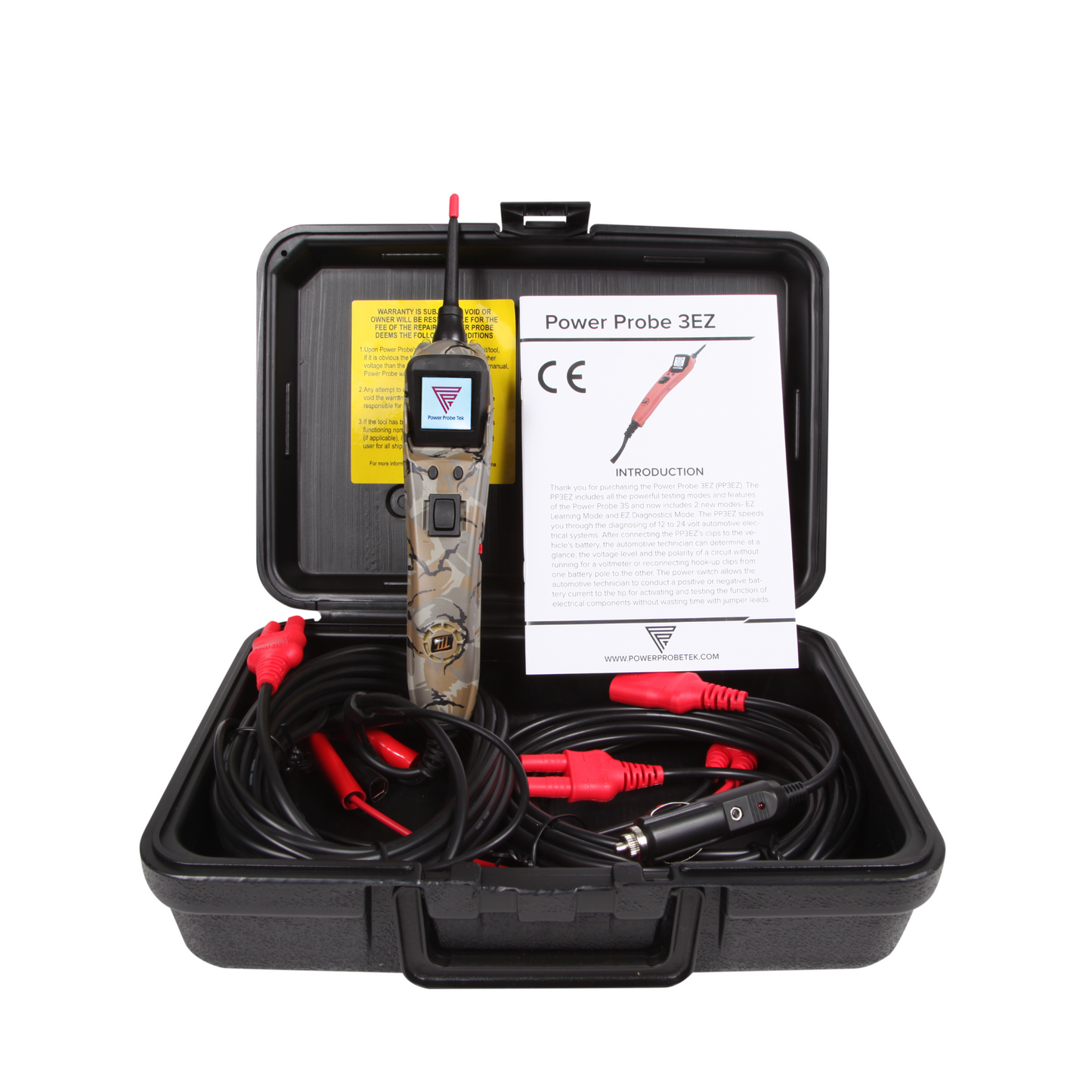

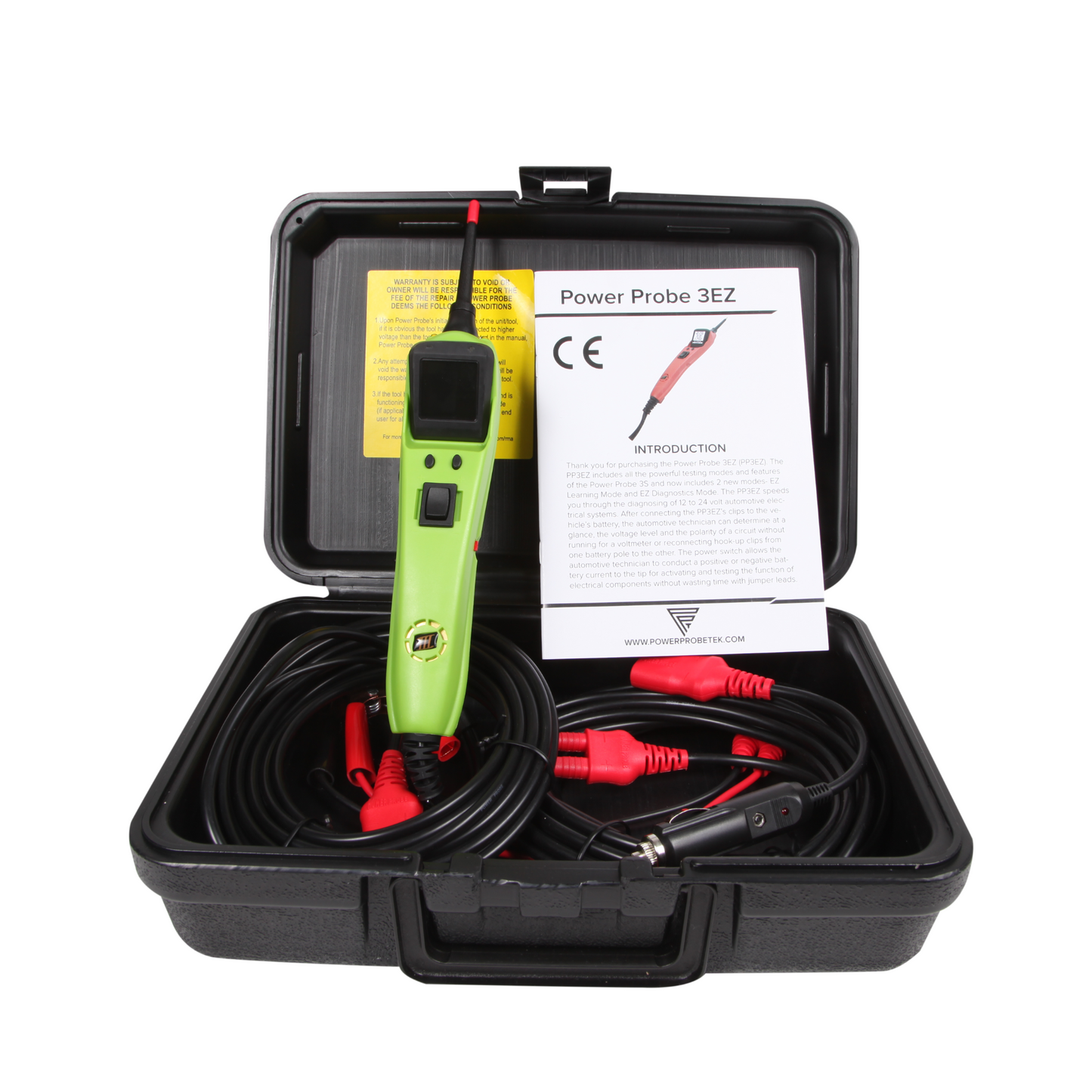

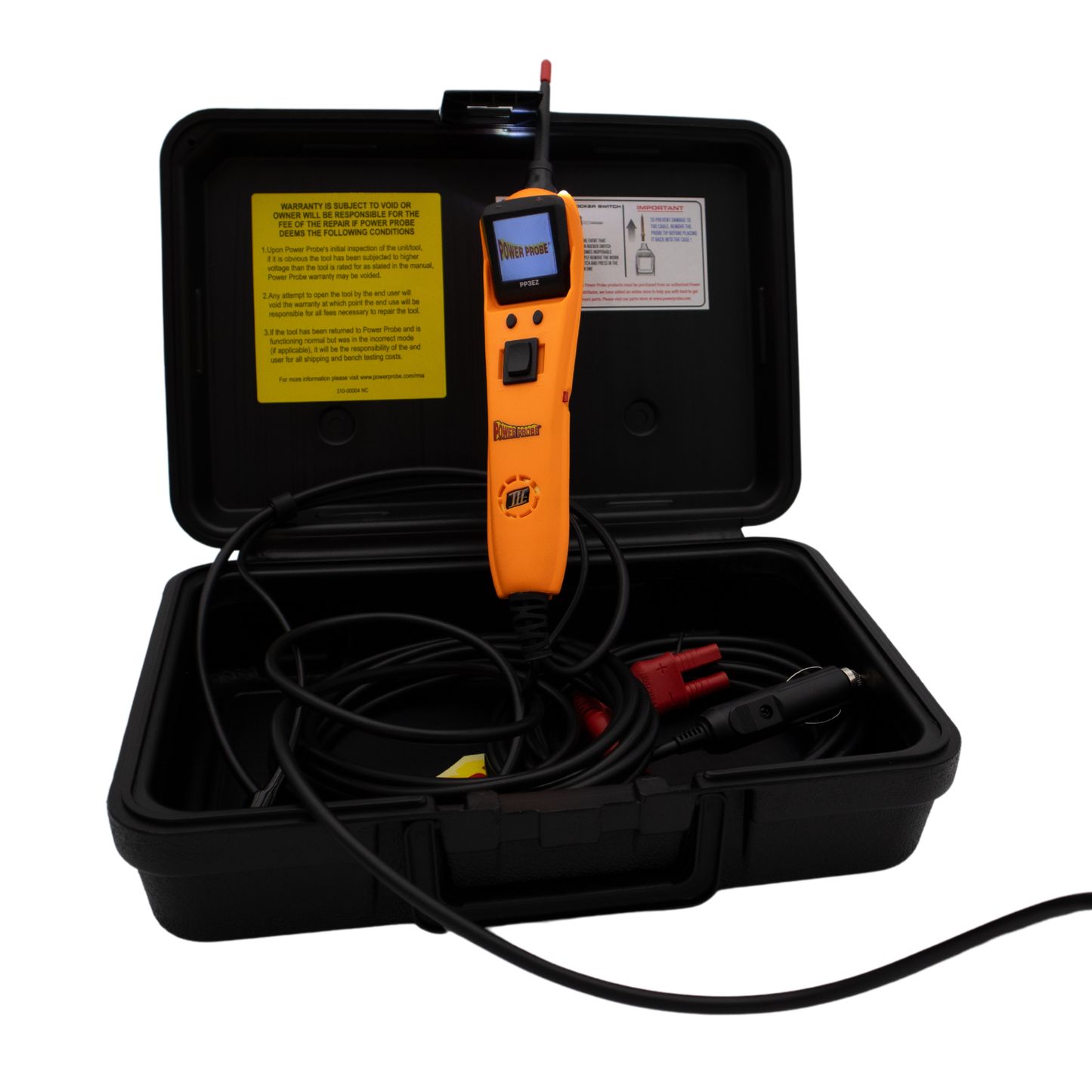

What’s included

• Power Probe® 3EZ with Standard 20 ft cable (6 m) Power Cable
• 3 In (8 cm) Probe Tip
• Battery Clip Set
• Hard Carrying Case
• Cigarette Lighter Adapter
• 20 ft (6 m) Power Cable Extension
• Instruction Manual

User Manual
View user manual (opens in a new tab)
Shipping & returns

Shipping policy

Returns policy

View full details

Advanced electrical testing with added flexibility.

EZ Learning & Diagnostics

Follow built-in guidance for operating the tool and performing common tests, including battery, charging, fuse, voltage, component, and 5V reference testing. Diagnostic procedures also provide access to supporting video content through QR codes.

Power & ground at the tip

Apply battery power or ground directly through the probe to activate components and quickly verify circuit operation. Applications include fuel pumps, motors, solenoids, lights, and other electrical components.

Multiple diagnostic modes

Measure more than basic voltage with dedicated modes for voltmeter testing, peak-to-peak readings, maximum and minimum peak capture, and adjustable AC threshold detection.
